Towards the universal defense for query-based audio adversarial attacks on speech recognition system

Abstract

Recently, studies show that deep learning-based automatic speech recognition (ASR) systems are vulnerable to adversarial examples (AEs), which add a small amount of noise to the original audio examples. These AE attacks pose new challenges to deep learning security and have raised significant concerns about deploying ASR systems and devices. The existing defense methods are either limited in application or only defend on results, but not on process. In this work, we propose a novel method to infer the adversary intent and discover audio adversarial examples based on the AEs generation process. The insight of this method is based on the observation: many existing audio AE attacks utilize query-based methods, which means the adversary must send continuous and similar queries to target ASR models during the audio AE generation process. Inspired by this observation, We propose a memory mechanism by adopting audio fingerprint technology to analyze the similarity of the current query with a certain length of memory query. Thus, we can identify when a sequence of queries appears to be suspectable to generate audio AEs. Through extensive evaluation on four state-of-the-art audio AE attacks, we demonstrate that on average our defense identify the adversary’s intent with over \(90\%\) accuracy. With careful regard for robustness evaluations, we also analyze our proposed defense and its strength to withstand two adaptive attacks. Finally, our scheme is available out-of-the-box and directly compatible with any ensemble of ASR defense models to uncover audio AE attacks effectively without model retraining.

Introduction

Benefiting from the application of deep learning, the field of speech recognition has also been widely developed. However, deep learning-based automatic speech recognition (ASR) systems are shown to be vulnerable to audio adversarial examples (AEs), which add tiny perturbations on benign audio clips to fool the deep neural network model. Thus, how to secure ASR systems to prevent AE attacks remains a critical question.

Multiple mechanisms have been proposed to defend against audio AEs on ASR. Some methods mainly rely on signal processing skills such as smoothing, downsampling, reconstruction, and so on Cohen et al. (2019), Joshi et al. (2021), Zheng et al. (2021), Tamura et al. (2019). These methods can destroy the adversarial components of AE to a certain extent, and prevent them from reaching the preset target to reduce their impact on ASR. But it also destroys the benign sample and works for defense against unknown attacks. There are some works that train an additional DNN network as a prior part of ASR (Sun et al. 2018; Akinwande et al. 2020; Guo et al. 2020). However, those defense methods depend heavily on the algorithms for generating AEs, the generalization capability is the key that limits the ability of defense, and the model will be difficult to discriminate the adversarial samples without participating in the training. In addition, the existing defense methods against audio adversarial examples focus on the generation results of AEs, without on the process.

We reinvestigate and rethink the process of generating the adversarial examples, trying to locate the “specific” features in this process. We also scrutinize the current state-of-the-art attacks, including white-box attacks (Carlini and Wagner 2018; Yuan et al. 2018; Schönherr et al. 2018), black-box attacks (Khare et al. 2018; Han et al. 2019; Abdullah et al. 2019) and transfer attacks (Abdullah et al. 2021; Cheng et al. 2019; Richards et al. 2021). We note that the perturbation of the AEs in some attacks is quite light, and the distance between them and the benign examples is small without a particularly significant difference. So it is difficult to identify whether a single input is an AE. We often ignore the process of AE generation and only pay attention to the results. How to utilize this discarded information. Yet, except for some attacks that directly generate AEs, the majority need to keep visiting the target model to adjust the AE, essentially stealing key information (e.g., gradients) from the model. In this case, the adversary needs to send massive and similar queries to the target model in a period, which likely exposure her adversarial behavior. Therefore, according to this feature, we do not try to discover individual inputs, rather we focus on the relationship between the inputs to recognize the attack.

In general, for a regular user, the correlation between consecutive benign query sequences is relatively low. This is because repeating a query input itself is considered an abnormal behavior, and the probability of benign queries repeating is extremely low. At the same time, there is a significant variation among other benign queries, leading to a relatively low correlation between them.

In this work, we propose a universal and lightweight defense framework to infer the adversarial behavior by memory mechanism. The basic idea of our framework is that generating adversarial examples and the query to ASR models is continuous and correlated before and after. In contrast, a regular query is independent of others. We consider some history inputs of a certain length as a piece of memory, analyze the correlation between a new input and the memory, and mark the input as adversarial if the correlation crosses a certain threshold. We use the similarity of the audio fingerprint to estimate the correlation of the input. The insensitivity of the audio fingerprint to noise is an attractive trait. Meanwhile, since its simplicity, it is hard for the adversary to be aware of the use of defensive models. Furthermore, motivated by the similarity matrix for recommender systems, In this way, we can efficiently and quickly verify that the input query sound is adversarial or benign. We employ a non-neural network defense architecture and are not able to optimize the defense model in a similar way to a neural network, so an attacker may not be able to attack the defense model from that perspective. This strategy efficiently identifies the existing state-of-the-art adversarial sample attacks. The robust average uncovering success rates (DSR) are all above \(90\%\). Also, our proposed framework can be easily combined with any other existing defense methods.

Finally, we study some adaptive attacks. We designed experiments with random noise attacks, which disturbed audio fingerprint feature extraction. For noise adaptive attacks, we observed that the modest level of random noise instead results in better performance to our defense system and we build a more robust defense system. In addition, we tested the potential role of different “fake query” ratios \({p_{fake}}\) on the results. We conducted experiments on both types of adaptive attacks and proved that our defense framework remains robust under the damage.

The main contributions of this work are three-fold:

  • We propose a new defense mechanism for adversarial audio attacks by analyzing the correlation between input with memory. This is the first proposed defense framework based on the AEs generation process for the ASR. The robust average uncovering success rates are all beyond \(90\%\) for existing attacks and we first evaluated the music-based AEs.

  • We demonstrate the robustness of our defense framework toward adaptive attacks. We found that the adaptive attack methods of fingerprint extraction damage and the “fake query” are unable to evade our defense, and our defense strategy is still effective. We build a more robust defense system through the combination of a moderate level of random noise.

  • We designed a music-carrier dataset that can be used to produce audio adversarial examples, which also establish a foundation for future research on attacks and defenses based on music-carrier. And we release the source code for our defense and datasets at: https://github.com/sveapp/Audio-denfense.

Background and related work

Adversarial examples (AEs) Adversarial attacks originate from images and quickly develop, with much relevant research. Many works achieve successful attacks on image classifiers by the computed gradient and these attacks are relatively convenient to implement (Goodfellow et al. 2015; Madry et al. 2017; Kurakin et al. 2016; Moosavi-Dezfooli et al. 2016). Some work explores transfer attacks from white-box to black-box models but needs a lot of access to the target model (Huang and Zhang 2019; Cheng et al. 2019; Richards et al. 2021). This provides a good reference for adversarial studies on audio. One may inquire about the reasons for the existence of adversarial examples. According to several works (Tsipras et al. 2018; Ilyas et al. 2019; Taori et al. 2020; Goyal et al. 2020), they think that adversarial examples are not a network drawback but a feature. The network attempts to learn “all” the beneficial features during the training process, whereas humans are naturally inclined to ignore some features. When an adversary attacks the model via manipulation of such features, it leads to a rapid decrease in the accuracy of the model, whereas the accuracy of humans is immune. Thus, our concern is not to remove the AEs and it fails to do so, instead, we should avoid the risk of the AEs to the model.

Audio adversarial attacks to ASR A similar situation exists in the ASR. Typically, a state-of-the-art ASR model is susceptible to deception by malicious AEs, which has evolved from a single-word attack to an attack on the entire sentence. Some state-of-the-art models were successfully attacked, Carlini and Wagner (2018) used CTC-loss to compute gradients to achieve an attack on DeepSpeech; CommanderSong (Yuan et al. 2018) used pdf-id to design a loss function to implement attack base on KaldiFootnote 1; Qin et al. (2019) implemented an attack on LingvoFootnote 2 with psychological masking. For black-box attacks, the gradient is incomputable. However, Taori et al. (2019) successfully attacked the DeepSpeech black-box model with a genetic algorithm; Chen et al. (2020) successfully attacked four commercial speech API services (Google Cloud Speech-to-Text, Microsoft Bing Speech Service, IBM Speech to Text, and Amazon Transcribe); Zheng et al. (2021) successfully attacked the speech recognition API interfaces of iFLYTEK and Ali with the co-evolutionary algorithm. Besides, attacks can already be launched in the physical world. In order to enhance the robustness of physical attacks, in Taori et al. (2019), Chang et al. (2020), Chen et al. (2020), the authors added the Gaussian white noise to AEs and the evaluation results show that this strategy enhances the physical robustness of the AEs. Although they do not require a specific noise model, they may rely on the playback device and the experimental environment. These attacks inevitably require a massive amount of queries to models, and query-based attacks are becoming worse with time. In this article, the main object of our report will be focused on recognizing such attacks before they succeed and defending against query-based adversarial attacks.

Defense against audio adversarial attacks The majority of proposed methods of defense against audio adversarial attacks are removing or ruining the adversarial component by the technical tool of signal processing. Paper (Cohen et al. 2019) proposed random smoothing to mask the disturbing adversarial component. Joshi et al. (2021) proposed WaveGAN vocoder to reconstruct the waveform to eliminate the disturbing domain. Szegedy et al. (2016) used label smoothing, Rajaratnam and Kalita (2018); Zhang et al. (2019) squeezed the audio, Zheng et al. (2021) is the down-sampling method and Tamura et al. (2019) added distorted signals. These works of defense are concerned with removing or ruining the perturbation component. Those approaches have both advantages and disadvantages, as it breaks the adversarial behavior of AEs while also causing a lot of damage to examples of benign queries. Deficiency of hard evidence for the difference between AEs and benign examples. Some people suggested applying sub-models to preclude some attacks (Su et al. 2019; Sun et al. 2018). The literature (Akinwande et al. 2020; Guo et al. 2020; Samizade et al. 2020) applies extra neural networks to check adversarial examples to protect the ASR model. But they can only restrain some existing attacks, which are impotent to uncertain attacks. The applications are limited due to the sub-models bulky. Some methods based on state detection of images (Chen et al. 2019; Pang et al. 2020) also provide some guidance for the audio adversarial attacks. Although these defensive works are available for certain types of attacks, it is a deficiency that the evaluation of adaptive attacks is incomplete or oversimplified. No integral architecture is available for combination with other methods. We work mainly on building a lightweight framework that can be easily combined with other defense methods.

Problem setup Hereafter, we concentrate on adversarial tasks. In a setup like this, the DNN is represented as f, and \(f:\varvec{X}\rightarrow \varvec{C}\) represents the given input \(x(x\in \varvec{X})\) is mapped to one of a set of classes \(\varvec{C}\), where \(f(x)=c\in \varvec{C}\). The DNN model is vulnerable to adversarial input attacks, which forces the DNN model to misjudge. Attacks on DNNs can be classified as targeted and untargeted. Here, we will focus on the setting of targeted attacks. Specifically, adversarial examples \({x^*}\) are normally generated by slightly modifying x and \({x^*} = x + \delta\). The solve of \(\delta\) can be converted to a min-optimization problem, i.e., arg min \(\mathcal L(f(x + \delta ),c^*)\). The adversary’s goal is to force f to misclassify \({x^*}\) as the target \({c^*}\), i.e., \(f({x^*}) = {c^*}, {c^*} \ne c\). To ensure that \({x^*}\) is acoustically similar to x, the perturbation needs to be restricted to a limited range \(g({x^*}-x) \le \varepsilon\), where the g is a measurement function of the auditory difference. The attack process is shown in Fig. 1.

Fig. 1
figure 1

The correct transcription of x is “My friend, how are you”, and the adversary’s purpose is to add a careful perturbation “\(\delta\)” to x and then make it become \({x^{\mathrm{*}}}\) that can be transcribed as the target of “Call my wife”

Threat model Our defense scheme in this work focus on query-based audio AE attack, including both query-based white-box audio AE attack such as CS (Chen et al. 2020) and DS (Chang et al. 2020) and query-based transferable audio AE attack such as DW (Wang 2003). Note that we would not include audio AE attack that no query is needed in the attack such as Vaidya et al. (2015), since no query data could be analyzed in our approach. Also, if the attackers deploy a local white box model to attack target model, there is no query generated so we will not include such attack scenario. In our paper, we consider that in white box attack like CS (Chen et al. 2020) and DS (Chang et al. 2020), defender could still observe the queries sent to the model. For defense against query-based attacks, our aim is to increase the difficulty and cost of the attacker’s attack, making it more expensive for them. While an attacker can query the model any number of times in trying to generate an adversarial example, our goal is to detect such attacks before they are successful. In the case of black-box API attacks, the attacker needs to apply for an API account beforehand, and many account applications require real-name authentication such as a phone number, credit card, ID, or passport. The attacker may create as many accounts as possible, but these conditions undoubtedly increase their cost. In addition, in our solution, the attacker’s account will be banned when an attack is detected, requiring them to create a new account before continuing. This makes it difficult for the attack to continue and to some extent achieves the goal of protecting the system. However, when the attacker has unlimited resources, no defense method can stop them.

Because our defense scheme is based on the process of generating adversarial samples, which is a code-based process, we need to run attack code to simulate the process of the adversary’s queries for experimental evaluation. We collected some open-source attack codes for experimentation, including the CS (Chen et al. 2020) attack, DW (Wang 2003) attack, ITRA (Chen et al. 2019) attack, and DS (Chang et al. 2020) attack. The CS attack targets the Kaldi aspire speech recognition model, the DW attack targets the speech recognition API, the ITRA attack targets the Lingvo speech recognition model, and the DS attack targets the DeepSpeech model. Therefore, our experiments mainly focus on these four models.

Defense against query-based audio adversarial attacks

A successful audio AE requires a specified carrier (the carrier can be music or dialogue) undergoing several iterations and queries. The process of AE generation is continuous. Every time, the adversary needs to produce a small disturbance \(\delta\) to repeatedly adjust \({x^*}\). When crossing the decision boundary, a successful AE is done and the whole process is depicted in Fig. 2. Our defense is motivated by the process nature of query-based attacks. We can examine the query-to-memory relationship to determine if queries are intended to generate an AE, which is the process-based defense approach. To calculate the correlation C of the new query about the memory, we used the similarity F of the audio fingerprint to estimate the correlation, i.e. \(C ({q_{\mathrm{{memory }}}}, {q_{\mathrm{{new }}}}) \approx F ({q_{\mathrm{{memory }}}}, {q_{\mathrm{{new }}}})\). For each query, audio has unique fingerprint information. The audio fingerprint is robust to noise and adapts to a noisy environment. Moreover, it can prevent audio splicing attack (Wang et al. 2003). According to the obtained fingerprints, we can figure out the similarity between the input query and the memory, which provides the foundation for our determination.

Fig. 2
figure 2

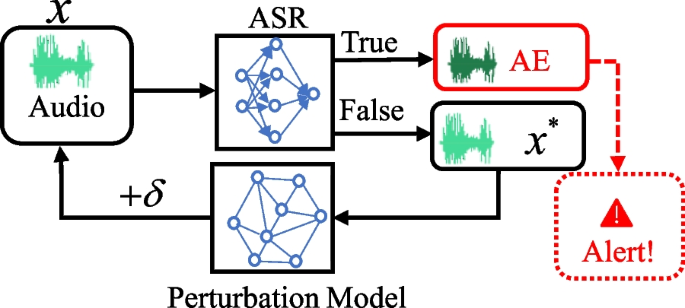

Query-based attack: setting a target, for the first time \({x^\mathrm{{*}}}\mathrm{{ = }}x\), if \(x^*\) can be transcribed as a target, the AE is true, else false, adjust the \(\delta\) carefully, and perform the next query. Repeat this process until \(x^*\) can be transcribed as the target

Defense architecture

Our defense architecture is a process-based defense approach and our goal is to find potential attacks in continuous queries. Suppose we have determined that the audio fingerprint similarity between the input query and memory is beyond the set threshold, we will report it as part of the attack sequence and take action accordingly. We can take some actions such as blacklisting the querying user or warning the user. Figure 3 illustrates our scheme.

  • Firstly, place query audio into the cache to form a query memory \(\varvec{X}\) of depth k. If the number of audio put into the cache is below k, consider all queries as a memory sequence. In the process of locating an attack, we expect to consume minimal resources and time, so k should not be too large. Also, it is disadvantageous to discover adversary behavior if k is too small. The k means the shortest depth before we can make sure that those input queries are intended to produce AEs.

  • Secondly, calculating the fingerprints of all inputs in memory \(\varvec{X}\) and overwriting and updating the previous memory.

  • Thirdly, for every new input audio, we calculate the weighted cosine similarity between the new input and each fingerprint in memory. Since audio fingerprint is a particular distribution about time and frequency, the cosine similarity can capture the correlation between such coordinate-dependent distributions. Besides, for each input, there is a necessity to check the legality, so we allocate a weight value \(\alpha\) to each input with the Inverse Variance Coefficient Method (Marin-Martinez and Sánchez-Meca 2010). Then, calculate the similarity of the queries via:

    $$\begin{aligned} \left\{ \begin{array}{l} s = \sum \limits _{i = 1}^k {{s_i}{\alpha _i}} \rightarrow {s_i}(x,{y_i}) = \frac{{x \times {y_i}}}{{\sqrt{{x^2}} *\sqrt{{y_i}^2} }}\\ \sum \limits _{i = 1}^k {{\alpha _i} = 1} \end{array} \right. , \end{aligned}$$
    (1)

    where x is the fingerprint of the new input, \({y_i}\) is a fingerprint in memory, and k is the depth of the memory \(\varvec{X}\). The final similarity value s is the weighted average value of \({s_i}\). The selection of the \({\alpha _i}\) value is explained in the next section.

  • Fourthly, obtain threshold \(\delta\), which implies minimal constraints regarding the input as malicious. When \(s > \delta\), it demonstrates that the current input is a potential attempt at generating an AE, and appropriate measures must be taken immediately. In practice, for the setting of \(\delta\), it is important to have a high uncovering success rate as well as a low false positive ratio. Usually, the false positive ratio will be limited to no more than \(10\%\) of the training data, according to the size of the training data set (Xu et al. 2017; Chen et al. 2019). The details of k and \(\delta\) are explained in the next part of this section.

Fig. 3
figure 3

Query-based defense: Architecture for recognizing query-based audio adversarial attack

Memory sequence

A memory sequence \(\varvec{X}\) consists of several queries that are placed in the cache. In the process of attack detection, we expect to consume minimal resources and time. So \(\varvec{X}\) should not be too large. Also, it is disadvantageous to detect adversary behavior if \(\varvec{X}\) is too small. \(\varvec{X}\) of depth k means the shortest sequence before we are sure that those queries are intended to produce AEs, and the length of the sequence is k, i.e.

$$\begin{aligned} \left\{ \begin{array}{l} k = \min \left(f(1),f(2)...f(n)\right)\\ f(i) = \left\{ {\begin{array}{*{20}{l}} {i,\;if\;f\;\mathrm{{can}}\;\mathrm{{detect}}\;\mathrm{{attacks}}\mathrm{{.}}}\\ { + \infty ,\;if\;f\;\mathrm{{can}}\;\mathrm{{not}}\;\mathrm{{detect}}\;\mathrm{{attacks}}\mathrm{{.}}} \end{array}} \right. \end{array} \right. \end{aligned}$$
(2)

where f is the detection function, f(i) indicate whether the function f can detect a sequence of length i. Equation 2 implies that the depth of \(1,2,...k-1\) is not sufficient for \(\varvec{X}\) to be considered as the intention of generating AEs; depths \(k, k+1,...n\) are considered to be for the purpose of generating AEs, with the minimum depth is k. We explain how to choose the value of k in parameter selection.

Query audio fingerprints similarity

The auditory similarity is an important feature in estimating the gap between humans and machines. There is a close auditory similarity between the malicious examples and the benign examples. The malicious examples are produced by appending carefully structured small perturbations to the benign carriers. Although the neural network regards them as two completely different classes, humans believe them as the same intuitively. So the trait of keeping intuitively consistent with humans is what we need. The audio fingerprint has this trait and is not sensitive as the DNN to perturbations. Fingerprints will maintain high similarity if humans believe they are the same samples.

It is possible to predict whether new input might have a strong correlation with the memory and whether they share the same behavioral attributes, according to the similarity computation between the preserved fingerprints and the new one. This is similar to the recommender system (Song et al. 2021; Nam 2022), which differentiates users based on their memory behaviors and recommends new content or products (Afchar et al. 2022; Shafiloo et al. 2021).

We note that the digital audio fingerprint (Haitsma and Kalker 2002; Wang 2003) uniquely flags audio. The small noise of the audio doesn’t bother the core information of the fingerprint. And it can defend against some attacks such as audio patching. Moreover, it is reliable and feasible in implementation cost to employ fingerprint similarity as an audio similarity. Fingerprint similarity relies on the following requirements, assume that s is the similarity function, xyz are three candidates in D dimensional space that satisfy Eq. 3, Eq. 4, Eq. 5, Eq. 6.

$$\begin{aligned}{} & {} s(x,y) \ge 0,(Non - negativity) \end{aligned}$$
(3)
$$\begin{aligned}{} & {} s(x,y) = 1,\;only\;x = y.(Homogeneity) \end{aligned}$$
(4)
$$\begin{aligned}{} & {} s(x,y) = s(y,x).(Symmetry) \end{aligned}$$
(5)
$$\begin{aligned}{} & {} s(x,y) + s(x,z) \ge s(y,z).(Triangular\mathrm{{ }}inequality) \end{aligned}$$
(6)

A robust acoustic fingerprinting algorithm needs to consider the perception of the audio. When two audio files sound the same, their acoustic fingerprints should be the same or very close, even if there are some differences in their file data.

According to the literature (Haitsma and Kalker 2002; Wang et al. 2003). The fingerprint similarity can be divided into two steps: fingerprint extraction and similarity calculation.

Audio corresponds to a unique fingerprint, so the relationship between digital audio fingerprint \(\varvec{F}\) and audio object \(\varvec{X}\) is a surjection \(h:\varvec{X}\xrightarrow {}\varvec{F}\), and only when \(\forall f \in \varvec{F}, \exists x \in \varvec{X}, \rightarrow f = h(x)\). That expands to \(\left\{ {{x_1} \rightarrow {f_1},{x_2} \rightarrow {f_2}\mathrm{{ }}...\mathrm{{ }}{x_n} \rightarrow {f_n}} \right\}\) or \(\{ {f_1} = h({x_1}),{f_2} = h({x_2})...{f_n} = h({x_n})\}\). For fingerprint \({f_i},{f_j} \in \varvec{F}\), we can obtain similarity \({s_{ij}}\) (\({s_{ij}}\in \varvec{S}\)) and \(g:\varvec{F}\xrightarrow {}\varvec{S}\) is surjection only when \(\forall s \in \varvec{S}, \exists {f_i},{f_j} \in \varvec{F}, \rightarrow s = g({f_i},{f_j})\). hg is the map function.

  • Fingerprint extraction (\(h: \varvec{X}\xrightarrow {}\varvec{F}\)). The fingerprint extraction process is illustrated in the fingerprint extraction module in Fig. 4. The main procedures include:

    1. (1)

      Preprocessing: it mainly involves frame split and filtering of the input data.

    2. (2)

      STFT: short-time Fourier transform. For each frame, apply STFT via Eq. 7, where x(t) is the input signal at time t, \({h(t - \tau )}\) is the window function, and \(S(\omega ,\tau )\) shows the spectral result if the center of the window function is \(\tau\).

    3. (3)

      Find Peaks: after STFT, select the frequency peaks f and corresponding time t, and make sure the distribution of frequency peaks is uniform.

    4. (4)

      Pairs: pair the obtained frequency peaks f and time t, then the result \(\left\{ {f,t} \right\}\) is used as fingerprints \(f_i\) and \(f_i\) is a high-dimensional vector of a certain length.

      $$\begin{aligned} S(\omega ,\tau ) = \sum \limits _{t = - \infty }^\infty {x(t)h(t - \tau ){e^{ - j\omega m}}} \end{aligned}$$
      (7)
  • Find Peaks. In Fig. 4, after calculating the STFT, we need to uniformly select the peak in the frequency domain. Equation 8 describes this process, in which F(nm) is the two-dimensional matrix after STFT, H(uv) is the kernel function. Equation 9 is the maximum filter and Eq. 10 is the high-pass filter for resetting the frequency to 0 when the frequency is below the cutoff \(D_0\). Both filters are useful for canceling low-frequency components and uniformly capturing the local maximum high frequencies. We choose the former as a tool to find peaks.

  • Similarity calculation (\(g:\varvec{F}\xrightarrow {}\varvec{S}\)). After fingerprint extraction, fingerprint f is obtained, which is written as \(x = f_i\). Similarly, another fingerprint can be written as \(y = f_j\) and its length is the same as x. Then calculate the similarity s between them. The process is illustrated in the Similarity Module in Fig. 4. The fingerprint contains coordinate-dependent details. Finally, the similarity of x, y could be achieved by Eq. 1.

    $$\begin{aligned}&G(u,v)\mathrm{{ = }}\frac{1}{{NM}}\sum \limits _{n = 0}^{N - 1} {\sum \limits _{m = 0}^{M - 1} {F(n,m)H(u - n,v - m)} } \end{aligned}$$
    (8)
    $$\begin{aligned}&H(u,v) = \mathop {\max }\limits _{s,t \in N(n,m)} [F(s,t)] \end{aligned}$$
    (9)
    $$\begin{aligned}&H(u,v) = \left\{ \begin{array}{l} 0,\mathrm{{ }}D(u,v) \le {D_0}\\ 1,\mathrm{{ }}D(u,v) > {D_0} \end{array} \right. \end{aligned}$$
    (10)
Fig. 4
figure 4

Architecture of fingerprint similarity calculation

Parameter selection

  • The choice of k and \(\delta\). The larger the k value, the more effective our solution is in observing input queries, and the smaller the k value, the lower the computational cost. The k is the minimum depth of memory before we are sure that those inputs are intended to produce an AE. The \(\delta\) is the minimum similarity before we determine that the current input is malicious. So the values of \(\delta\) would be influenced by the depth of k. Specifically, establishing the threshold requires evaluating fingerprint similarities under the datasets, so that if the entire datasets were to be randomly streamed as queries, \(0.1\%\) of the carrier datasets would be marked as attacks. (In theory, the percentage of false positives should be limited to \(10\%\) of the dataset size, but since our dataset is small, our value is 100 times smaller than the default.)

Actually, the threshold \(\delta\) is a function of k, and Fig. 5 discloses their relation. The smaller the threshold \(\delta\), the more intense the constraints on the input. Hence small thresholds are advisable, but the too-small value risk regards a benign input as malicious. From what we observed from Fig. 5 with the increase of k, the similarity drops sharply in the beginning. (In turn, the distance rises, rapidly. The higher the similarity, the lower the degree of dissociation between input queries, i.e., the closer the distance.) After it reaches around \(k=75\), curves become smooth and increase modestly with k, and the process is quite gentle, so we set up k as 75 and the thresholds \(\delta\) in both datasets are 0.313711 and 0.207398.

We investigate large-scale attacks on ASR systems. As can be seen from Table 2, the number of queries for all attacks is significantly greater than k (\(k=\)75). The value of k is defined as the minimum memory sequence required to detect an attack with a probability higher than 0.9 (false positive rate of 0.1%) when the similarity exceeds \(\delta\). In other words, the probability of detecting an attack is greater than 0.9 when the similarity surpasses \(\delta\) at least k times. The relationship between k and \(\delta\) is functional. In the experiments, many attacks can be identified as such after querying k times, whereas some attacks, such as DW attacks (See for more details), require almost 80 queries for the similarity to exceed \(\delta\). Moreover, if we increase the false positive rate, the value of k will decrease, meaning fewer queries are needed to determine whether a query is an attack.

Fig. 5
figure 5

k and \(\delta\): the mean k number of the \(0.1\%\) percentile of the datasets as a function of k

  • The choice of \(\alpha\).   First, let’s consider a case, in Eq. 11 below:

    $$\begin{aligned} \left\{ \begin{array}{l} {\mathrm{{s}}_1}\mathrm{{ = f(}}{\mathrm{{X}}_A}\mathrm{{, }}{\mathrm{{q}}_{new}}\mathrm{{), }}{\mathrm{{X}}_A} = \{ {\mathrm{{q}}_0}\mathrm{{,}}{\mathrm{{q}}_1}...{\mathrm{{q}}_m}\mathrm{{,}}{\mathrm{{q}}_n}\}\\ {\mathrm{{s}}_2}\mathrm{{ = f(}}{\mathrm{{X}}_B}\mathrm{{,}}{\mathrm{{q}}_{new}}\mathrm{{) , }}{\mathrm{{X}}_B} = \{ {\mathrm{{q}}_0}\mathrm{{,}}{\mathrm{{q}}_1}...\mathrm{{p,}}{\mathrm{{q}}_n}\} \end{array} \right. \end{aligned}$$
    (11)

There exist two memory sequences \(\varvec{X}\), where memory \(X_A\) consists of \(\{ {\mathrm{{q}}_0}\mathrm{{,}}{\mathrm{{q}}_1}...{\mathrm{{q}}_m}\mathrm{{,}}{\mathrm{{q}}_n}\}\) and \(X _B\) is: \(\{ {\mathrm{{q}}_0}\mathrm{{,}}{\mathrm{{q}}_1}...\mathrm{{p,}}{\mathrm{{q}}_n}\}\), \({\mathrm{{s}}_1}\) and \({\mathrm{{s}}_2}\) are the similarity of the two sequences with new input, f is the fingerprint similarity function. The key distinguishing element between \(X_A\) and \(X_B\) is that the query \({q_m}\) differs from p. Assuming that p is a query deliberately placed in the queries by an adversary. The adversary’s purpose of injecting p is to try to fabricate a fake input (i.e., almost irrelevant to the former) to confuse the analysis of the similarity and hide her intent. Essentially, both \(X_A\) and \(X_B\) are malicious memory sequences with only trivial disparity. But \({\mathrm{{s}}_1}\) is below the threshold and \({\mathrm{{s}}_2}\) is beyond the threshold, \(X_A\) is decided as a potential attack while \(X_B\) is not decided as a potential attack due to the injection of a fake query. We call this p-input as “fake query”, and the ratio of “fake query” to all queries is called \({p_{fake}}\) (\({p_{fake}}\mathrm{{ = (p/k)*100\% }}\)). In our experiments, we found that the s value would change sharply when there were “fake queries” in the query memory and we employed the Inverse Variance Coefficient Method (Marin-Martinez and Sánchez-Meca 2010) to describe such fluctuations and disparities. According to this method, it is easy to determine the weights \(\alpha\), which are assigned as follows:

$$\begin{aligned} {\alpha _i} = 1 - \frac{{st{d_i}(s(l))}}{{mean{_i}(s(l))}} \rightarrow {\alpha _i} = \frac{1}{\alpha }{\alpha _i}(\alpha \mathrm{{ = }}\sum \limits _{i = 0}^k {{\alpha _i})} , \end{aligned}$$
(12)

where \(mean{_i}\) depicts the mean, \(st{d_i}\) depicts the standard deviation, and \(s(l)\mathrm{{ }}\) depict getting the query vector of length l/2 before and after the i-query. For l, we set the maximum value as 7 (No more than \(10\%\) of the memory length, i.e. \({l_{\max }} = floor(0.1*k) = floor(0.1*75) = 7\)) and l begin with 2 (The mean and variance are worthwhile at least two values). Then, the value increases linearly. When it exceeds the maximum value, l shrinks to half of the original value and then increases linearly duplicate. Repeat this process until all elements are traversed.

Table 1 Non-adaptive attack evaluation. SRoA denotes the success rate of attack

Evaluation

In this section, we will show the evaluation results of our scheme for some non-adaptive attacks and adaptive attacks. We collected open-source code attacks as much as possible, and we did not evaluate attacks without open-source code, but we made some surveys about their details. Finally, we evaluated four class attacks that are well-known in the audio adversarial attack. Those are sufficiently representative and the bulk of the other work revolves around them. We evaluate the CommanderSong (CS) (Yuan et al. 2018) attacks and the Devil’s Whisper (DW) (Chen et al. 2020) attacks by applying the Music-set. The Mini-Librispeech dataset is applied to assess the IRTAFootnote 3 attack (Qin et al. 2019) and DSFootnote 4 attack (Carlini and Wagner 2018). Those attacks all reported a success rate of attacks (SRoA) of almost \(100\%\).

Datasets

Our scheme conducts experiments on Mini-LibrispeechFootnote 5 and Music-sets datasets (We build a carrier library of music-based samples containing 10,553 music clips. Appendix Music-sets contains all details about Music-sets). For Mini-Librispeech, this is a dialog-based dataset that some classic attack works rely on it and we cannot ignore it Taori et al. (2019); Han et al. (2019); Khare et al. (2018). For Music-sets, music has the characteristic of large-scale availability in most situations, and its accessibility and popularity allow it to become a candidate of the carrier in attacks. Lots of strong attacks (Yuan et al. 2018; Carlini and Wagner 2018; Chen et al. 2020; Schönherr et al. 2018; Zheng et al. 2021) refer to music as the necessary carrier for producing AEs. So, defense and evaluation of the AEs on musical carriers are inevitable and important.

In our approach, when the correlation between consecutive queries exceeds a certain threshold, it is considered as queries submitted by an attacker. For determining the threshold, we rely on two datasets: a conversation dataset and a music dataset. Although both datasets have the same k value (75), the \(\delta\) is different. In real-world attack scenarios, the defender cannot know whether the attacker used conversational data or music data as the carrier for AEs. However, there are some simple methods to distinguish whether an audio segment is conversational or musical since there are significant differences between conversational and musical data regarding energy variation, spectrum, rhythm, and other features. We evaluate several attacks on both types of data, where the carrier category used by the attacker is presumed to be known in advance. In instances where the carrier category is unknown, reducing the \(\delta\) value to increase sensitivity is one approach, and feature differentiation is also an effective method.

Evaluation metric

  • DSR. To evaluate the effectiveness of our approach for defending the query-based attacks, we employ the detection success rate (DSR) and First-Signal-to-Noise Ratio (FSNR) as the evaluation metrics. The detection success rate (DSR) is the most intuitive metric to evaluate the detection results. To calculate it as follows:

    $$\begin{aligned} DSR({\% }) = \frac{{{{\text {d}} _n} * k}}{{{a_n}}} \times 100\% , \end{aligned}$$
    (13)

    where \({{\text {d}} _n}\) is the number of detections, \({a_n}\) is the number of queries, and k is the length of memory X. Obviously, the DSR value is below 1 because \({a_n} > {{{d} _n} * k}\) is clear. The detection occurs after performing at least one query. For our purposes, we consider it to measure the probability of finding adversary behavior. A higher DSR is preferable.

  • The First-Signal-to-Noise Ratio (FSNR) is a function that defines the minimum SNR to detect an attack, i.e., how much SNR when we can detect the attack, as shown in Eq. 14:

    $$\begin{aligned} FSNR(dB) = 20{\log _{10}}\left(\frac{{{A_x}}}{{F{A_\delta }}}\right), \end{aligned}$$
    (14)

    where x is the original sound, \(\delta\) is the perturbation, \({A_x}\) is the amplitude of the original sound, and \(F{A_\delta }\) is the amplitude of the perturbation when the first attack is detected. This is a metric of the relative value of distortion of the AE vs the original sound. The higher FSNR describes that the query will be regarded as a suspect under a smaller perturbation.

Non-adaptive attack evaluation

We evaluate four class attacks that are well-known in the audio attack. Those are sufficiently representative and the bulk of the other work revolves around them. We evaluate the CommanderSong (CS) (Yuan et al. 2018) attack and the Devil’s Whisper (DW) (Chen et al. 2020) attacks by applying the Music-set. The Mini-Librispeech dataset is applied to assess the IRTA attack (Qin et al. 2019) and DS attack (Carlini and Wagner 2018). Those attacks all reported a success rate of attacks (SRoA) of almost \(100\%\). CS attack is the representation of employing music as carriers and some subsequent works (Chen et al. 2020; Zheng et al. 2021) set it as an indispensable collection. The DW attack is the typical instance for commercial black-box APIs. Subsequently, much of the works (Han et al. 2019; Abdullah et al. 2019) on black-box attacks has to test on APIs. IRTA attack based on the psychoacoustic hiding model is an outstanding work of the period. And several studies (Schönherr et al. 2018; Abdullah et al. 2021) adopted the psychological masking effect. DS attack is the earliest version of voice attack, which launched the gateway to voice attack and provided a reliable infrastructure for the subsequent works.

  • N1. CS attack evaluation CS attack is a white-box attack by injecting target commands into the song. It started a precedent of producing AEs with music as a carrier and achieving a \(100\%\) success rate of attacks (SRoA) on the Kaldi speech recognition system. It has a profound influence, and many follow-up works set it as an indispensable reference. For the defense based on our approach, there are few blanks in the music, the spectrum is abundant, and the fingerprints are often more reliable than those of the dialogue version. Table 1 shows that CS examples spend an average of about 300 visits to the target model. Our security architecture can accurately detect such attacks with DSR up to \(98\%\). However, the value of FSNR is only 7.38 dB, revealing that the AEs were already very noisy when we suspected the query was an attack. The primary factors of this situation are that the small perturbation is not ideal for a CS attack and the perturbation is constrained to a very broad range. Therefore, the amount of additional noise is significant. Apart from that, various audio lengths will affect the SRoA of AE. To ensure the validity of AE, the length of audio ought to be no shorter than 4 s. The longer the audio, the richer the fingerprint, which is more helpful for detection. However, the shorter audio is not beneficial for the adversary to generate AEs successfully.

  • N2. DW attack evaluation DW attack first accomplished a black-box attack on commercial speech recognition APIs (including Google Assistant, Google Home, Amazon Echo, and Microsoft Corina). Since then, attacks on APIs have gradually become a necessary option for black-box attacks and the most intuitive indicator of the attack algorithm. Table 1 shows that DW also works based on the music dataset, which accounts for \(50\%\) of CS in the average query to the target model and SRoA is close to \(98\%\). On defense, our approach enables a DSR of \(84.74\%\) under DW attack. DW attack employs a local substitution model to simulate approximately the target model of the APIs ASR system. It helps to diminish the number of queries and the likelihood of triggering detection. So DSR possible losses. The FSNR value is 18.41dB, which is about 2.5 times that of CS. DW increases the FSNR value by reducing the number of visits to the model, and the perturbation naturally decreases.

DW adopts Noise Model to augment the physical robustness of AEs. However, the SRoA is deeply relevant to the environment and the device. Regarding the noise model, the combination of our scheme with some straightforward measures (e.g., down-sampling, filtering) can raise the level of difficulty of physical attack.

Table 2 An overview of the query-based attacks against ASR
  • N3. IRTA attack evaluation IRTA attack is a two-stage attack algorithm on Lingvo, concealing target commands to a space that the human ear cannot hear through a psychoacoustic masking model. The IRTA example is based on the open-source dataset Librispeech. This type of dialogue audio contains a large number of silent fragments. Therefore, the fingerprint of the audio is inferior to that of the music. But the inspiring thing is that our approach maintains a robust attack detection and that the DSR reaches \(84\%\). This can be attributed to the time cost of this type of attack (Producing a successful adversarial example costs 24.8h) leads to a remarkable number of queries. Such massive queries easily provoke the inspection of the defense system. Moreover, the perturbation is very small, and the FSNR can reach 40.97dB in which the psychoacoustic masking model plays an important role. Still, the perturbation would reflect the frequency domain and the fingerprint extraction happens in the frequency domain. We can further presume that it will be costly to bypass our defenses for adversaries with an emphasis on hidden perturbation via psychoacoustic masking. Nevertheless, it also exposes a critical concern: In the areas that humans fail to hear, is there a necessity for the machine to do so? AI researchers aim to narrow the gap between humans and machines, so machines should also appear human-like for regions beyond human perception. Blocking such attacks implies that the machine does not have the power to do anything in the regions where humans are unable to perceive, thus, the attack will completely dissolve.

  • N4. DS attack Evaluation DS attack is a type of attack first implemented on DeepSpeech. At its core is to optimize the CTC-Loss function. Compared to IRTA attacks, DS is relatively heavily perturbed that maybe without applying the theory of psychological masking, and relatively poorer FSNR but DSR is \(82.5\%\) closer to IRTA. Compared to CS and DW attacks, DS and IRTA attack are implemented on Librispeech containing rare fingerprint information, so DSR is inferior to CS and DW. Nevertheless, the general FSNR is superior to the former, showing the method’s detection capability to attacks with small perturbations. Separate work deploys genetic algorithms and gradient estimation to generate adversarial samples. However, gradient estimation relies on the sampling theory. Biological evolutionary algorithms demand substantial expenses without the guideline of the gradient. The literature (Taori et al. 2019) queries numbers up to 1000+, and the literature (Zheng et al. 2021) reach a stunning 30000+. From Table 1, it has a remarkably higher detection rate for query numbers above 1000+. Multiple query numbers are an obvious disadvantage of the evolutionary algorithm. Unless improving this shortcoming, do not expect to evade our inspection.

We investigated the perturbation level of AEs so that we can easily compare them with FSNR, as shown in Table 4.

Table 3 DSR as a function of the \({p_{fake}}\)
Table 4 Perturbation levels for different attacks (The numbers in the table are the outcome after normalization)
  • N5. other query-based attacks evaluation Other query-based attacks, the majority of them are based on the 4 attacks above. CS attack is the representation of employing music as the carrier. After that, subsequent work (Chen et al. 2020; Zheng et al. 2021) also set it as an indispensable collection. The DW attack is a typical example of attacking commercial black-box APIs. Subsequently, a lot of the work (Han et al. 2019; Abdullah et al. 2019) on black-box attacks has to be tested on APIs. IRTA attack based on the psychoacoustic hiding model is an outstanding work of the period. Several studies (Schönherr et al. 2018; Abdullah et al. 2021) adopted the psychological masking effect. Literature (Wang et al. 2021; Du et al. 2020) using biological evolutionary algorithms to perform attacks and optimize the number of queries. DS attack is the earliest relatively sophisticated version of an audio attack, which provides a reliable infrastructure for subsequent works. Since our defense framework is process-based, we were unable to evaluate the attacks without open-source code but still surveyed them. More relevant details are provided in Table 2.

We can learn from the above that applying a music carrier is quite advantageous for detection, also the detection is significant when the number of queries is numerous. The critical factor is that the fingerprints of music are more obtuse to perturbations, while the conversational ones are not. In terms of fingerprint extraction, Fig. 9 from the Appendix supports similar results. In the following, we built a more robust defense system that raises the average DSR beyond \(90\%\) and substantially strengthens our defense, Table 5 shows the results. For adversaries, unless improving those shortcomings, do not expect to evade our inspection. Below, we propose a more robust defense system by combining other methods, which can achieve a detection ratio of over \(90\%\), The details are in.

Table 5 Robust defense: we add noise based on different SNR, the lower the SNR, the heavier the added noise

Adaptive attack evaluation

Whereas our defense framework can effectively detect existing attacks, it only assures in “zero-knowledge” attack scenarios where the attacker is unknown of the existence of the defense framework. In order to reliably implement our framework in practice, we have to assess adaptive adversaries who understand the defense details entirely and intend to deploy some strategies to bypass the defense mechanism. Following the guidelines of Carlini et al. (2019), we designed adaptive attacks to evaluate the ability of our defense to adaptive attacks. According to the defense details we consider both adaptive attacks: Random Noise attack and Proportion of Fake Queries attack.

  • A1. random noise attack We conceive an adaptive attack of corrupting fingerprint extraction. Randomly insert noise with different SNR to the audio in the process of query. Forcing the \({x^ * }\) to bypass the defense, and successfully attack the ASR, and the perturbation is not easily perceived by the human. In Fig. 6, according to audio quality theory, when SNR is above 70, it belongs to high-fidelity quality audio. When \(SNR=0\), the noise has the same energetic value as the original audio, so when SNR is below 0, the original audio is almost flooded with noise. We also test the success rate of the audio AEs with added noise under different level (refers to SNR). The results show that when SNR is larger than 25 dB, the adaptive attack could achieve same attack success rate as the original attack. Under these settings, our defense could still get an effective DSR rate. Under SNR=0 setting, although our DSR rate reach a lower level, the auditory imperceptibility of the audio AEs would be very poor which is unacceptable for the adversaries (audio AEs in previous work never reached such a low SNR).

When Noise-SNR>0, the SRoA and DSR are rapidly recovering to their maximum value and keep it and the SRoA, in other words, DSR displays a comparable consistency. Though large noise decreases the DSR value but also decreases SRoA, which diverts from the adversary’s target. So it is impossible to achieve superior SRoA while trying to break our defense. However, when the Noise-SNR value gradually increases, for IRTA and DS attacks, SRoA is rapidly recovering to its maximum value and keeping it except IRTA attack recovery is slower and the DSR value sharply rises and then gently drops until it becomes peaceful. Since Mini-Librispeech is a dialogue-based dataset and it contains a lot of blank frames, when inserting noise, it will fill the blank and become more helpful to the extraction of fingerprints. It can be deduced that joining appropriate noise can improve the robustness of our method. The query of containing noise does not undermine our defenses, on the contrary, it leads the defense system more sensitive and robust.

Fig. 6
figure 6

Adaptive attack: Different noise-snr to disturb the extraction of fingerprints. Noise-SNR indicates the noise of different SNR. The smaller Noise-SNR means higher noise level

  • A2. proportion of fake queries attack Moreover, we noted above that some adversaries use “fake queries” to develop a fake query history. In this section, we evaluate the impact on the defense system for different proportions of “fake queries” (\({p_{fake}}\)). Table 3 plots the results. It also can be intuitively understood from Fig. 7. As observed, there is a critical threshold \({p_{fake}}\) for the defender: once \({p_{fake}}\) exceeds this threshold, the DSR drops dramatically. For these attacks, if \({p_{fake}} \ge 60\%\), DSR drops to approximately \(10\%\) or \(0\%\). For CS and DW attacks, the DSR linearly dropped when \({p_{fake}} \in [25,50]\). However, for the other two attacks, this situation does not happen. An intuitive explanation of this can be as follows: \({p_{fake}}\) mainly affects the estimation of the query of interest for defense; yet, the priority of our defense is to distinguish the authenticity of the query, \({p_{fake}}\) tends to have a larger impact on our proposal.

    The AE carriers employed by CS and DW attacks are music, while IRTA and DS attacks use conversationally. The fingerprint information of the music is richer than that of the conversational (as can be intuitively observed in Fig. 9). This implies that the fingerprints of music have more features for matching when computing similarity, but conversational has fewer matching features. As the proportion of fake queries gradually increases, the impact on the similarity of music fingerprints is heavier than that of conversational. Therefore, the sensitivity of the two kinds of datasets to fake queries is different. The adversary’s strategy to evade detection would probably be to set up \({p_{fake}}\) to a sufficiently high value (e.g., \({p_{fake}} \ge 60\%\)), but this would dramatically raise the cost of the attack and the number of queries. This increases the cost and pressure on the attackers, as they are uncertain whether they can ultimately obtain a successful AE to attack the target model.

    Fig. 7 shows the effect of \({p_{fake}}\) on DSR.

  • A3. siscussion of other strong adaptive attacks Intuitively, attacker could use other strong adaptive attacks to break our defense. Firstly, the attacker could modify the loss function for generating adversarial examples to include the fingerprint similarity score between the current speech and the speech in the local memory, which could reduce the fingerprint similarity between adjacent submitted speeches then bypass our defense. Secondly, the attacker could apply improved random noise adaptive attack such as EOT method in Chen et al. (2022), which could solve the problem of search direction fluctuations caused by randomness and generate more robust AEs to break the defense. We suggest future advanced defense which is based on audio fingerprint method could focus on these strong adaptive attacks to improve the defense robustness.

Fig. 7
figure 7

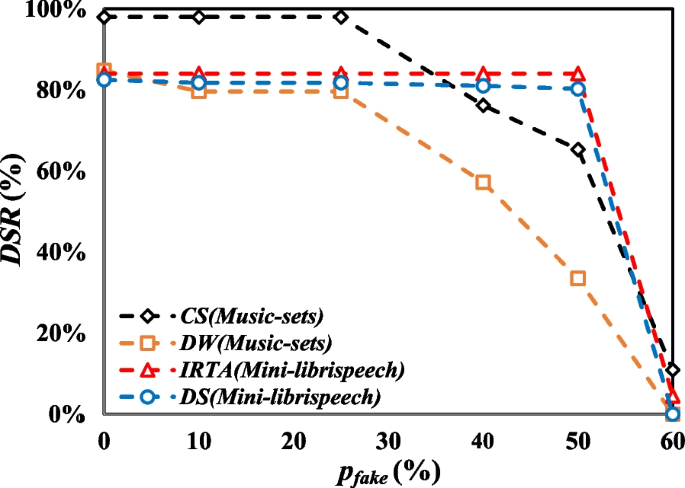

DSR as a function of the \({p_{fake}}\)

Robust defense In the random noise adaptive attack and Fig. 6, we found that the appropriate level of noise could help us build a more robust defense system, so we further studied the subtle relationship. In Table 5, we set up six different noise levels. The audio belongs to high-fidelity quality audio when \(SNR>75\) and the noise is extremely slight. Once the noise gradually rises to \(SNR=75\), our defense system can achieve more than \(90\%\) detection success rate for all attacks; when the noise rises to \(SNR=50\), the detection success rate reaches the maximum (and the average is \(93.69\%\)). The noise \(SNR<25\), the noise has become significant, exceeds the threshold, and the detection success rate drops. So, with the noise \(SNR \in [25,75]\), we can build a more robust defense system and achieve a detection ratio of over \(90\%\). Besides, our experiments also proved that the small input noise has a defense effect (Byun et al. 2022).

Besides, our scheme is available out-of-the-box and directly compatible with any ensemble of ASR defense models. First, our defense strategy can be combined with adversarial training to further enhance the robustness of the model. Adversarial training involves augmenting the training dataset with adversarial examples to improve the model’s adaptability to such attacks. Second, our defense strategy can be used alongside various input transformations to provide an additional layer of security. Techniques such as feature squeezing or spatial smoothing can be applied to input audio to reduce adversarial perturbations. In Yang et al. (2018), multiple defensive measures, such as quantization, local smoothing, and down-sampling, have been employed. Paper (Hussain et al. 2021) proposes the WaveGuard method, which uses signal processing techniques to preprocess input audio, reducing the impact of adversarial perturbations. While WaveGuard has demonstrated good results in mitigating adversarial sample attacks, there is still room for improvement in practicality and sound quality assurance. Our defense strategy is designed to be directly compatible with any ASR defense model ensemble, which is also one of our future research directions-exploring powerful defensive ensemble systems.

Discussion

However, with more research on attacks, single-step generation attack of AEs is growing, which impose higher requirements on the defense. From another aspect, our scheme increases the attacker’s attack cost, and our scheme will be fooled if the attacker has many resources. Fingerprint fraud techniques can also create vulnerabilities in our approach. In addition, some adversaries may give up their attacks on the target system and turn to attack the defense system, which also warrants our attention.

Our work is mainly focused on the ASR domain. It would be interesting to explore whether similar ideas can be applied to other application domains (such as speaker recognition Chen et al. 2021, 2022, and speech anti-spoofing detection Zhang et al. 2020) by constructing a suitable similarity algorithm for that domain.

We calculated the value of k under the condition of setting the false positive rate at 0.1%, i.e., when the k value is 75, the probability of misjudgment is less than 0.1. Generally, the more queries an attack has, the higher the confidence in determining whether it is an attack. If we increase the false positive rate, then k will be less than 75, allowing us to detect attacks with fewer queries. This may be a future research direction for us: establishing a multi-level defense system under different conditional probabilities to provide defenders with more information for making decisions.

Conclusion

In this work, we analyze adversary behavior during AE generation and detect potential attacks based on the association before and after the query. Our focus is on detecting the AE generation process, which provides a novel approach to process-based defense. Our approach achieves an average detection success rate of over \(90\%\). It is a lightweight framework that is both quick and efficient, able to be closely combined with other defenses to build the foundation for a structured defense system.

Availability of data and materials

The code is available at: https://github.com/sveapp/Audio-denfense.
