An ensemble deep learning based IDS for IoT using Lambda architecture


The Internet of Things (IoT) has revolutionized our world today by providing greater levels of accessibility, connectivity and ease to our everyday lives. It enables massive amounts of data to be traversed across multiple heterogeneous devices that are all interconnected. This phenomenon makes IoT networks vulnerable to various network attacks and intrusions. Building an Intrusion Detection System (IDS) for IoT networks is challenging as they enable a massive amount of data to be aggregated, which is difficult to handle and analyze in real time mainly because of the heterogeneous nature of IoT devices. This inefficient, traditional IDS approach accentuates the need to develop advanced IDS techniques by employing Machine or Deep Learning. This paper presents a deep ensemble-based IDS using Lambda architecture by following a multi-pronged classification approach. Binary classification uses Long Short Term Memory (LSTM) to differentiate between malicious and benign traffic, while the multi-class classifier uses an ensemble of LSTM, Convolutional Neural Network and Artificial Neural Network classifiers to detect the type of attacks. The model training is performed in the batch layer, while real-time evaluation is carried out through model inferences in the speed layer of the Lambda architecture. The proposed approach gives high accuracy of over 99.93% and saves useful processing time due to the multi-pronged classification strategy and using the lambda architecture.


The Internet has been overgrown in the last decade resulting in easy access to information, data and resources online (Lata and Kumar 2022). This high connectivity has resulted in the growth and everyday use of the Internet of Things (IoT) (Nair 2019). These days the applications of IoT range from many areas, including smart homes, medicine, industries, smart enterprises, infrastructures, monitoring systems and defense sectors resulting in totally transforming the world we live in today (Khattak et al. 2019). This widespread use has accentuated the need for further developing the IoT environment to tackle the growing challenges of the future. These challenges include performance and computational issues, protocol-related vulnerabilities, the heterogeneous nature of IoT devices and above all, security and privacy concerns.

The security and privacy aspects of IoT have lately been a widely discussed topic among researchers because of the massive surge in IoT-related attacks. Tackling these attacks in an IoT environment are relatively different from other networks because the IoT devices are heterogeneous, low-powered and have resource constraints making the problem of dealing with these attacks much more complex (Aswale et al. 2019). Another important aspect related to the IoT networks is the ownership and/or custodianship of devices which is not clear and regulated, adding confusion about responsibility in case of any attack on confidentiality, integrity and availability of data and information. Moreover, the trust of users on the security aspect of these IoT devices and the network is critical since all interconnected nodes and devices exchange, store, traverse, share, transform, and translate data which makes it vital to answer the big question of building and maintaining end-user trust.

Along with the information storage and management challenges faced by IoT, security and privacy issues, including confidentiality, integrity, and availability, are the most critical requirements that need to be addressed in the early phase conducted to design the architecture of a smart system. IoT networks face various security attacks that can compromise the prime functionality of data storage and communication by risking users’ data privacy. Attacks like Denial of Service (DoS) will render a complete network or specific nodes unavailable, disrupting the information flow. Attacks like scanning, enumeration, and reconnaissance will help attackers compromise user privacy by revealing sensitive data, which would be helpful in tearing down different aspects of security associated with the IoT network. IoT devices are a lucrative target for attackers because of the following reasons:

  1. 1.

    The contact internet connectivity, i.e. 24/7 switched-on state of the IoT devices raises the probability of attacks as it is easy for the attackers to access the device

  2. 2.

    Security hardening in a network composed of different sorts of IoT devices is a cumbersome task in comparison to hardening a single machine.

  3. 3.

    Weak or no encryption along with weak or default passwords are a major cause of attacks in most IoT devices

  4. 4.

    The interconnected nature of these devices adds to the vulnerability exposure as multiple devices can be accessed from one compromised device.

The basic IoT architecture comprises five layers Perception, Transport, Processing, Application and Business. These layers are responsible for performing different tasks on data as it moves from one layer to the other (Agarwal et al. 2022). Moreover, all these layers have security issues that must be addressed to guarantee safe and secure data flow between these IoT devices. These security issues target not just the data and information being traversed on the network but also the network protocols and the IoT devices. Table 1 explains the IoT layers, their purpose and security issues at all these layers in detail.

Table 1 IoT layers and security issues

The most obvious solution to tackle such attacks is to build an Intrusion Detection System (IDS) which first detects and then thwarts these attacks (Saha et al. 2020). Researchers in recent years have focused on protecting IoT devices from all sorts of attacks by proposing various intrusion detection solutions that guarantee data security and privacy and build users’ trust. Initially, these IDS solutions were signature-based, which could only detect anomalies based on a set of predefined rules and signatures. These IDS solutions perform well against already-known intrusions but fail against sophisticated attacks. Moreover, with the increased frequency of zero-day attacks, signature-based solutions have become obsolete and ineffective. Lately, researchers have shifted towards more innovative techniques like anomaly-based IDS that involve machine learning and deep learning techniques to thwart unknown network intrusions. The anomaly-based IDS is based on two phases, training and testing. In the training phase, a model is trained on known data which is later tested on unseen data in the testing phase. However, the attackers have kept themselves abreast with the latest defensive techniques and equipped themselves with more advanced techniques to compromise security. One such method widely adopted by attackers is packet obfuscation and encryption techniques. The proposed research presents an Intrusion Detection approach for IoT environments based on an ensemble deep learning method using the Lambda architecture.

The main research contributions of the proposed framework are as follows:

  1. 1.

    We have developed a Hybrid Intrusion Detection System (IDS) that is capable of discriminating between normal network traffic and attack traffic of five different types, in a real-time environment effectively.

  2. 2.

    In order to process the real-time traffic, our system employs a two-staged strategy, i.e. a quicker binary classifier that differentiates between normal and attack traffic, and in the second stage, the attack traffic is further classified into different types of attacks.

  3. 3.

    Both classification models are trained using deep learning algorithms. Binary classifiers best perform on LSTM, whereas, in order to improve the accuracy of multi-classification, both deep and hybrid ensemble-based approaches were used.

  4. 4.

    System is developed and evaluated using Lambda Architecture having two modes, Batch Mode and Stream Mode. The model training is performed in Batch Mode, whereas the real-time traffic monitoring (using the trained models) is performed in Stream Mode.

  5. 5.

    Performance analysis is done in terms of accuracy as well as throughput. The results demonstrate that the multi-staged strategy ensures that the decisions required to be taken in real time are separated from the in-depth analysis and model training, thus improving the accuracy as well as the throughput.

The remainder of the paper is organized as follows: “Related work” section  presents the related work in IDS-IoT. “Proposed framework” section  presents a proposed framework in a Lambda architecture, including an overview of the architecture scheme and highlighting the advantages of utilizing Lambda architecture and the deep learning models to handle the stream and batch data classification to detect IoT environment attacks. “An evaluation performance of the proposed approach” section  introduces the proposed approach’s evaluation after our experiments utilizing the most common evaluation metrics. The last “Conclusion and future work” section includes concluding remarks.

Related work

Many research works have focused on detecting network intrusions in IoT using machine learning and deep learning approaches.

Ali and Cotae (2018) presents a deep learning-based IDS for classifying the traffic flow in the network. The research used binary and multiclass classification models to detect DoS, DDoS, information gathering and information theft attacks. Alenezi et al. (2021) presented a machine learning and deep learning-based approach to detect Denial of Service attacks in IoT networks. Docs (2020) presents a technique which uses a spider monkey optimization (SMO) algorithm along with a stacked-deep polynomial network (SDPN) for achieving optimal intrusion detection. The proposed work results in better accuracy and precision. Maniath et al. (2017), Fang et al. (2018) and Sarker et al. (2022) have used an ensemble approach using traditional machine learning and not deep learning approaches for detecting network intrusions in IoT. In Gustavsson (2019) the author used the CICIDS2017 dataset and Zeek tool to convert PCAP files into log files. Initially, the author uses two sets of features to detect network attacks. Simple and complex features consist of 10 and 50 features, respectively. Later, the result of both sets barely differed, so the author used a simpler set of features instead for improved speed. In Sarhan et al. (2020), they converted four widely known datasets into NetFlow. NetFlow is an industry-standard protocol for network traffic collection. Zeek extracted 49 and 44 features from UNSW-NB15 and ToN-IoT, respectively. Argus extracted 42 features from BOT-IoT, while 73 features were extracted from CSE-CIC-IDS2018 using CICFlowMeter-V3. Random forest was used to perform binary and multiclass classification. The binary classifiers performed better on all four datasets. However, the classifier did not perform well on some datasets. The authors decided to increase the number of features for better performance. Similarly, in another study (Otoum et al. 2022), authors presented a deep learning-based intrusion detection system for IoT devices that uses an optimization algorithm known as spider monkey optimization (SMO) algorithm integrated with the stacked-deep polynomial network (SDPN) where SMO performs the optimal features selection, and SDPN performs the classification. They performed detection for denial of service (DoS), user-to-root (U2R) attacks, probe attacks, and remote-to-local (R2L) attacks. In another study, Khan et al. (2022) performed a critical analysis of various deep learning algorithms for IoT environments using various network-based datasets. In another work reported in 2021, Idrissi et al. (2021) presented a deep learning-based algorithm using the CNN network to detect Botnet attacks. They claimed that the results produced by their methods are 99.04% accurate with a prediction time is 0.34ms.

Ahmad et al. (2022) presented an ensemble deep learning approach by combining Deep Neural Network (DNN) and Decision Tree (DT) classifiers. The approach does not identify attack types based on a binary classification approach. Martins et al. (2022) also presented an ensemble approach using machine learning techniques for detecting attacks in IPv6 Routing Protocol for low-powered and lossy IoT networks with high accuracy. Malik et al. (2022) also presented an ensemble anomaly detection approach to detect DoS, DDoS, reconnaissance and key-logging attacks by combining a C5 classifier and a One-Class Support Vector Machine classifier. Pan et al. (2022) proposed an ensemble-based approach based on Deep Belief Networks and issued the critical problem of redundant features by adopting a Minimized Redundancy Discriminative Feature Selection approach.

Siddique et al. (2018) presented a deep learning-based ensemble approach by combining two Dimensional Convolutional Neural Network (2-D CNN), Artificial Neural Network (ANN) and Multi-Layer Perceptron (MLP) models. The proposed work covers major cyber-attacks with accuracy. The proposed approach lacks real-time detection and rather works on a benchmark dataset. Ghimire and Rawat (2022) presented an improved CNN and LSTM-based approach to detect Distributed Denial of Service Attacks (DDoS) in social media and outperforms the classic implementation of CNN and LSTM. The proposed work does not cover other prominent cyber-attacks and does not rely on Lambda architecture for model training and testing. Mehedi et al. (2022) used CNN and LSTM models along with character encoding for Spatial Feature Learning (SFL) techniques to differentiate obfuscated and encrypted HTTP traffic from normal traffic. The technique is not ensemble based and focuses on obfuscated packets only. Prabha and Kumar (2022) made use of Deep Belief Networks (DBNs) to detect intrusions in the Edge-of-Things (EoT). Table 2 shows the comparison of existing IDS approaches for IoT.

Table 2 Existing IDS approaches for IoT

IoT networks in real-world environments generate massive amounts of data that traditional methods cannot handle, thereby requiring some advanced mechanism to be deployed for handling that massive amount of data. For that purpose, one obvious choice is to use the Lambda architecture (Hertel et al. 2020), which provides a regimented methodology for processing massive quantities of data by providing access to batch-processing and stream-processing methods using a hybrid approach. Researchers have employed Lambda architecture for proposing IDS solutions for big data generating IoT environments to save the implementation and computational cost and bring efficiency (Lahasan and Samma 2022).

Ma (2020) made use of the Lambda architecture for dealing with massive amounts of data generated by the Smart home environments. Lambda architecture has also been used for quality assessment purposes in smart road networks (Roopak et al. 2019) and for real-time visualization of sensors generated data in smart manufacturing environments (Diro and Chilamkurti 2018). Amanullah et al. (2020) employs the lambda architecture for devising a Security Operations Centre (SOC) to thwart adversarial attacks using extreme learning machine neural network with Gaussian Radial Basis Function kernel. The proposed approach is not for IoT environments. Patan and Babu (2018) present a cloud-based Snort network IDS using docker containers and lambda architecture for detecting and visualizing network-related intrusions. Lopez et al. (2018) proposed a technique that combines cloud computing and distributed stream processing techniques to accurately and quickly detect network threats. The proposed approaches are not for IoT environments. Kayode (2020) present a cloud-based security solution for transmitted data in an IoT smart plug using the lambda architecture. Tangsatjatham and Nupairoj (2016) proposed a log anomaly detection technique that uses Apache Spark for data processing and Apache Flume for data collecting. Using the Lambda architecture helps support log processing in large environments. Table 3 presents further analysis of Lambda architecture to address big data issues.

Table 3 Using Lambda architecture to address big data issues

The main shortcomings in the existing IDS approach in IoT are listed below:

  1. 1.

    Most research works focus on a single or limited number of IoT attacks and fail to cover a wide variety of IoT attacks.

  2. 2.

    Most research works do not focus on detecting intrusions in real-time and rather perform all experimentation on offline datasets

  3. 3.

    Most proposed works only rely on single binary classifiers differentiating between malicious and benign packets and fail to detect the type of IoT attacks

  4. 4.

    Many research works do not employ Ensemble based techniques for achieving better accuracy and precision.

  5. 5.

    Many proposed research works have not been evaluated and developed using big data architectures.

The proposed research work addresses all these issues by presenting a deep ensemble IDS approach using lambda architecture and is the extension of our previously published work (Alghamdi and Bellaiche 2021).

Proposed framework

Recently, several papers over-viewed model buildings to classify streaming data. This section highlights data processing, data storage, and data ingestion systems that can be used to build the Lambda architecture to handle the stream and batch data for classification purposes using deep learning approaches to detect attacks in IoT devices. Moreover, data preparation, feature selection, training steps, and the detection process are covered.

Datasets used

The selection of datasets plays a vital role in training any deep learning or ensemble-based classifier. The more comprehensive the dataset, the more elaborately and accurately the trained model performs on the unknown dataset. In this proposed research work, we have used a prominent benchmark dataset publicly available and has widely been used by security researchers in devising IDS solutions for IoT-based environments. IoT-23 (Str 2020) is used, which was published in Jan 2020, is a dataset of network traffic from the Internet of Things (IoT) devices. The dataset comprises malware-affected and benign traffic for IoT devices, with 20 and 3 captures, respectively for each type of traffic. The complete size of the dataset is  20GB. The dataset is distributed in a way that 60% of it was used for training, 20% for validation (dev-set) and the remaining 20% for testing purposes.

Data pre-processing

After reading all the IoT-23 dataset files, we pre-processed the dataset as follows:

  • Dropping useless features like “ts”,“uid”, “id.orig_h”, ’id.orig_p”. Using those features can lead to overfitting. Removing such features will help us achieve a generalizable solution to our main problem.

  • Dropping features which hold only NaN values. Features are: “local_resp”, “local_orig”, “history”.

  • Dropping duplicated rows as those can appear in both training and testing sets and can also lead to overfitting.

  • Mapping label names to their correct labels as they were completely messed.

  • Imputing NaN values for features origin_bytes and dest_bytes by -1 to make it easier for the model to distinguish those values as missing or as non usual values.

  • Encoding Categorical features using Ordinal encoding for features proto, service, conn_state. Using ordinal encoding. Ordinal encoding allows us to encode features in a way that features do not have any ordered relationship between them.

Target features are encoded as follows:

  • Benign:0

  • C &C:1

  • PartOfAHorizontalPortScan:2

  • DDos:3

  • Okiru:4

The final dataset contains 8,887,466 rows and 13 columns. Random undersampling was performed to correct imbalanced data to reduce the risk of their analysis or machine learning algorithm skewing toward the majority and having fair results for all the classes. At the time of training the machine and deep learning algorithms, we applied MinMaxScaling in [0,1] range to the dataset to improve the quality of our data and help models converge faster.

Lambda architecture

Lambda architecture provides a structured way of dealing with and processing large amounts of data in real-time, making it a suitable architectural solution for dealing with IoT environments. The use of this architecture adds flexibility, scalability, agility and high availability to the system. The basic working of the lambda architecture is explained in Fig. 1 while the layer-wise details are mentioned in Fig. 2.

It is a data-processing architecture that uses both batch and stream processing to manage large amounts of data. By employing batch processing to provide thorough and accurate views of batch data and real-time stream processing to provide views of live data, this approach to design aims to strike a balance between latency, throughput, and fault tolerance. It is possible to combine the two view outputs before display. The lambda architecture is associated with the development of large data, real-time analytics, and the desire to reduce map latency.

Fig. 1
figure 1

The Lambda architecture (Yang et al. 2017)

Fig. 2
figure 2

Layers of Lambda architecture

Feature engineering

Selecting features from the network traffic is an important step as it directly affects the performance of our classifiers. These features deeply reflect the nature of network traffic and contain detailed information and characteristics of the network-related benign and malicious traffic. Selecting features for the binary classifier is different from selecting network features for the multi-class classifier because, in the later case, different features help in determining different kinds of network intrusions. For instance, a feature might be very useful in determining DoS attacks but not that useful for detecting malicious code attacks. Therefore, the selected network features must be related to the type of attack under study. Similarly, all network features do not play a part in determining anomalous traffic, as few network features might not be helpful at all in determining anomalous traffic. Since the dataset under consideration had many features which were categorical and deep learning engines are good at working with numerical data, therefore, feature transformation was required. For that purpose, we used the Fit_Transform, which is available in Scikit_Learn Python library (Bisong 2019). The encoder assign values ranging from 0 to n-1 where n is the total number of records under consideration.

Batch layer: training of classification models

The batch layer is the lambda architecture’s high latency and high accuracy layer, which deals with batches of data, not in a real-time environment. We have utilized these characteristics of the batch layer for training both classifiers in the batch layer using a publicly available benchmark dataset. In this regard, we are not worried about the latency and time associated with training these classifiers. The entire training process at the batch layer is further highlighted in Fig. 3.

Fig. 3
figure 3

Training classifiers in batch layer

For training both the binary and multi-class classifiers, we used three deep learning classifiers ANN, CNN and LSTM.

Convolutional neural networks (CNN)

A CNN comprises one or more convolutional layers, which are further linked by one or more fully connected layers (Shahid et al. 2022). Here the input and output layers are combined through multiple hidden layers, which generally contain a sequence of convolutional layers. CNN’s are good at detecting malware attacks, malicious scripts and codes and finding abnormal traffic patterns.

Long short term memory (LSTM)

LSTM is a particular type of recurrent neural network which are capable of learning long-time dependencies (Azumah et al. 2021). Their default behavior is to remember information for longer periods of time. This is possible because of four neural network layers in the repeating module, which interact in a special way. They are useful in detecting attacks related to state maintenance like Cross Site Scripting, DDoS and other application layer attacks.

Binary classifier

In order to train the binary classifier in the batch layer, we individually applied and trained all three deep-learning classifiers on the training dataset. We later found out in the testing phase that the LSTM binary classifier outperforms the CNN and ANN-based binary classifiers in terms of accuracy and intrusion detection. This classifier only detects whether a network packet is benign or malicious and does not detect the type of attack. If a packet is found malicious, it is the responsibility of the ensemble-based multi-class classifier to detect its type. Since in the real-time majority of the network traffic in IoT environments are benign, this approach will save useful processing time as benign packets do not have to pass through the ensemble-based multi-class classifier. The detailed working of the Binary Classifier is shown in Algorithm 1.

figure a

Deep ensemble multi-class classifier

In order to train a classifier to perform multi-class classification, we initially used three individual classifiers, i.e. LSTM, CNN and ANN. We performed their hyper-parameter tuning as well. However, the best performance was 98.20%, achieved in the case of LSTM. In order to further improve the performance, we used Majority voting, an ensemble technique shown in Algorithm 2. The majority voting relies on the performance of the individual learners (called as base learners at Level 0), and produces the final prediction based on the majority voting at Level-1 (as shown in Fig. 4. The results achieved using this ensemble technique gave an accuracy of 98.20%. Later, in order to improve the accuracy and decrease the computational complexity of deep learning classifiers, we used another ensemble approach by combining CNN with the Random Forest classifier and the Decision Tree classifier, as shown in Fig. 5. This approach gave an accuracy of 99.93%.

Fig. 4
figure 4

Deep ensemble configuration for multi-class prediction

Fig. 5
figure 5

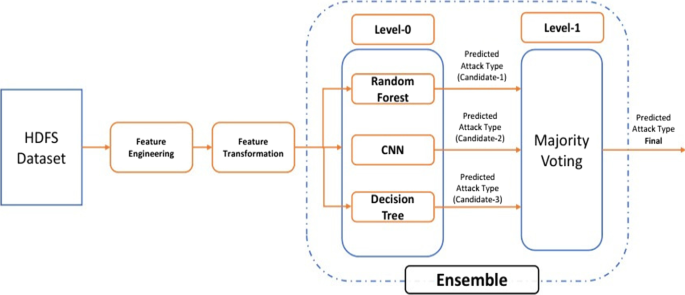

Hybrid ensemble configuration for multi-class prediction

figure b

Also we adopted another technique which is weighted ensemble as shown in Figs. 6 and 7 and reflected in Algorithm 3 that is based on combining predicted probabilities for each model based on the equation:

$$\begin{aligned} \widehat{y} = argmax (sum( p_{i}*w_{i} )) \end{aligned}$$

where \(p_{i}\) is the predicted probabilities for classifier i and \(w_{i}\) is the weight that can be assigned to the classifier i where \(sum(w_{i})\) = 1. This approach gave an accuracy of 99.6%.

Since this classifier is only responsible for detecting the type of attack as it always receives malicious network traffic, therefore we created a subset of the training dataset in a way that it only contains the attack traffic of multiple IoT network attacks and does not contain benign samples. Table 4 gives details about hyper-parameters of all three models in both binary and multi-class classifiers.

Table 4 Hyper-parameters detail in all classifiers

All the models were trained using Rectified Linear Unit (ReLU) as an activation function for all layers except for the last, where we used the sigmoid function for the binary classification models and the softmax function for the multi-classification models. The number of epochs was fixed at 300 epochs for all the models, batch size = 64, learning rate = 0.001, with Adam used as an optimizer. In addition, we used an early stopping callback with parameter patience set to 10 and minimum change in the monitored quantity to qualify as an improvement = 0.001 to prevent overfitting where we were tracking the validation loss.

Fig. 6
figure 6

Deep ensemble configuration for multi-class prediction

Fig. 7
figure 7

Hybrid ensemble configuration for multi-class prediction

figure c

Speed layer: analysing network traffic in real time

The speed layer in the lambda architecture deals with a real stream of data and is good at dealing with problems which need minimizing latency. This layer works efficiently in a limited time and handles data that is not delivered to the batch layer because of its latency issues. Here the ingress data stream is fast processed, and the real-time view of data is promptly updated. In the speed layer, we made use of the model inferences we earlier trained at the batch layer for analyzing network intrusions in real-time. The binary and multi-class classifier’s inference engines are exposed to a data stream, as shown in Fig. 8.

Fig. 8
figure 8

Real time model deployment

Emulation of real-time data using Kafka

For real-time emulation of data, we used a popular event streaming platform Kafka which is used to provide data integrity and sequence in real-time stream data. Kafka does this event streaming of IoT network’s data in a highly scalable, elastic and fault-tolerant way. The processed data can be stored in the cloud for later offline processing, and analysis (Carnero et al. 2021). The loud storage feature provided by Kafka helps further refine the overall system and understand the attack paradigm during later analysis.

Model inference (binary classifier)

The incoming data stream is first routed toward the binary classifier’s inference engine, which categorizes malicious and benign packets. As discussed earlier, this engine will not detect the type of network attack/intrusion. Traffic packets categorized as benign will pass on smoothly, while those detected as malicious will be routed toward the multi-class classifier.

Model inference (multi-class classifier)

Once the binary classifier detects a network packet or flows as malicious, it would be directed to the ensemble-based multi-class classifier, which is composed of ANN, LSTM and CNN deep learning models. This module will categorize the attack family and label the type of attack using a voting-based ensemble approach. All this is happening in real time as Kafka emulates the testing traffic to look like real-world IoT traffic containing data streams.

An evaluation performance of the proposed approach

Environment setup

We implemented the proposed deep ensemble-based IDS model in Python 3.7 with Tensorflow 2.6. to validate the efficacy of the proposed architecture. The experiment was done on a core-i5 machine with 64-bit Operating System (OS) and 16GB RAM. The software stack contained Java (JDK) 11, Hadoop 2.7, Spark v3.0, Pyspark 3.0, and Kafka 2.6.

Evaluation metrics

We used the most critical performance indicators for evaluating the proposed IDS that uses deep learning models for attack detection. The most commonly used evaluation parameters by researchers are mentioned below:

  1. 1.

    Recall This evaluation metric measures the proportion of real positive instances that have been predicted positive (Miao and Zhu 2021) and can be calculated as described in Eq. 1.

    $$\begin{aligned} Recall = \frac{TP}{TP+FN} \end{aligned}$$
  2. 2.

    Precision Precision is also called predictive values as it refers to the proportion of predicted positive and negative results that are true positive and true negative results, respectively (Davis and Goadrich 2006). Precision is applied to a variety of areas to describe the performance model such as machine learning, data mining, and information retrieval. It is calculated using Eq. 2.

    $$\begin{aligned} Precision = \frac{TP}{TP+FP} \end{aligned}$$
  3. 3.

    AccuracyAccuracy can be explained as the overall performance of the classification model (Visa et al. 2011). It can be calculated using Eq. 3.

    $$\begin{aligned} Accuracy = \frac{(TP+TN)}{TP+FP+TN+FN} \end{aligned}$$
  4. 4.

    F1-scoreIt is also known as the F-measure that considers both precision and recall (Chicco and Jurman 2020). F1-score can be calculated using Eq. 4.

    $$\begin{aligned} F1 =2 \times \frac{(precision\times recall)}{precision+recall} \end{aligned}$$
  5. 5.

    Throughput It refers to the number of results produced per unit of time. This is measured in units of flow in our case (Grochowski et al. 2004).

Performance of binary classifiers (LSTM, CNN, ANN)

For evaluating the binary classifier, we individually deployed and tested all three deep learning models to analyze their performance on the testing dataset. The model training and validation accuracy and loss were calculated, which helped realize the most suitable binary classification model with the highest performance evaluation parameters.

Fig. 9
figure 9

Training and validation accuracy of LSTM

Fig. 10
figure 10

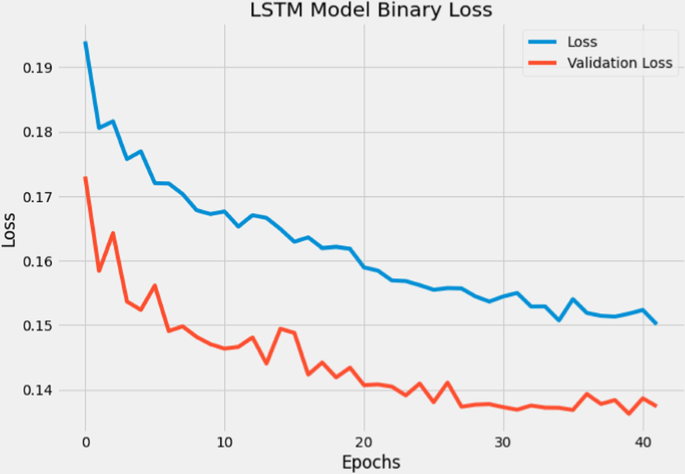

Training and validation loss of LSTM

Table 5 shows all performance indicators for ANN, CNN and LSTM-based classifiers for the binary classification model. It is evident that LSTM outperforms both ANN and CNN-based classifiers in terms of accuracy and precision. For that matter, we eventually used only the LSTM in the binary classification model that was trained at the batch layer. The training and validation accuracy and loss of the LSTM classifier are reflected in Figs. 9 and 10 respectively. The time is for processing a single sample (Table 6).

Table 5 Model results for binary classification

Performance of multi-class classifiers (LSTM, CNN, ANN)

We initially trained, deployed and validated all three deep learning models individually for the multi-class classifier to analyze their performance in detecting various attack types in the testing dataset. The individual deployment was necessary to provide a rationale for choosing the ensemble-based approach. The training and validation accuracy and loss of the ANN classifier are reflected in Fig. 11 and 12 respectively, while that of CNN is shown in Figs. 13 and 14 respectively.

Fig. 11
figure 11

Training and validation accuracy of ANN

Fig. 12
figure 12

Training and validation loss of ANN

Fig. 13
figure 13

Training and validation accuracy of CNN

Fig. 14
figure 14

Training and validation loss of CNN

The training and validation accuracy and loss of the LSTM classifier are reflected in Figs. 15 and 16 respectively. It is evident that the performance of all three models in the multi-classification stage is close to each other. Moreover, the performance of LSTM is also not as good as it was in the binary classifier. This motivated us to go for an ensemble-based approach in the multi-class classification stage using all three deep learning models.

Fig. 15
figure 15

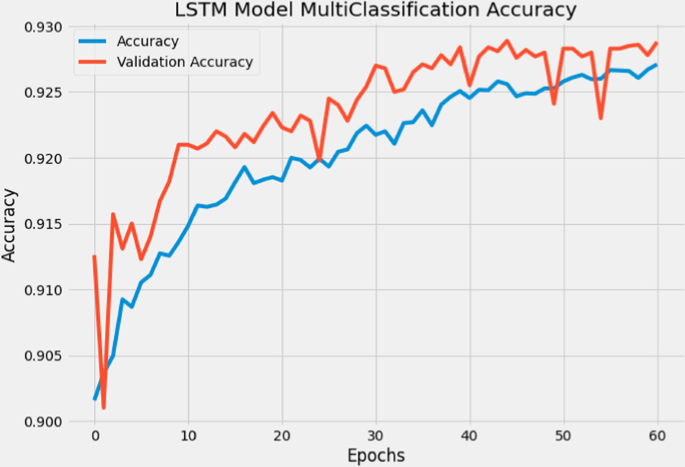

Training and validation accuracy of LSTM

Fig. 16
figure 16

Training and validation loss of LSTM

Table 7 provides performance details of the multi-class classifier with all three deep learning models individually deployed. It shows their performance in detecting the type of network attacks in an IoT environment.

We further experimented using all types of traffic, including the attack traffic and normal traffic (using 5 classes for traffic) in Table 8. We can see that the detection accuracy of splitting the detection into two stages, i.e. Binary followed by multi-class for attack-only traffic, is better than using the entire problem as a single multi-class problem with 4 types of attack and normal traffic.

Performance of ensemble-based approach

In order to further improve the accuracy of Multi-Classification, we have employed two variants of the ensemble (Majority Voting) and the weighted ensemble of three individual classifiers. The first one is the ensemble of three deep learning classifiers including ANN, CNN and LSTM, and the second variant is a hybrid ensemble that uses Random Forest, CNN and Decision Tree.

Although the time consumed by ensembles is much more than using only individual classifiers, however, since multi-classification is invoked only when the binary classifier has already detected an attack, the time consumption by the ensemble may be tolerated against the trade-off for better accuracy of detecting the attack type. The accuracy achieved by using the hybrid ensemble is 99.93% which is higher than the accuracy reported by individual classifiers. Table 6 shows the performance of applying the ensemble technique on Attack only data.

Table 6 Results for attack only data—attack classification in batch mode using ensemble classifiers

Analysing performance (throughput) of Lambda architecture

The prime intent of using the Lambda architecture was to enhance the system performance in terms of efficiency and throughput. We integrated the models into the Kafka-Spark streaming framework to generate a streaming process for evaluating processing time on the test dataset. The comparison of Tables 7 and 8 shows that the processing time in batch mode is slightly better than that for multi-classification without using Lambda architecture. Furthermore, the binary classification in binary mode, as shown in Table 5 is much quicker than batch mode or without using Lambda architecture.

Table 7 Results for attack only data—attack classification in batch mode
Table 8 Results for multi-classification without using lambda architecture—5 traffic types: 1 for benign and 4 for attacks

As shown in Fig. 17, different time windows have been used to stream the data from 1 to 15 s. As expected, LSTM processes the data quickly as compared to other models in all window frame times for binary classification scenarios. However, in Fig. 18, it is evident that ANN works faster than other models and the LSTM performance decreases with increased length of the time window increases.

Fig. 17
figure 17

Throughput of binary classification based on window size

Fig. 18
figure 18

Throughput of multi-classification based on window size

We also evaluated all deep learning models based on batch processing time using the Spark framework. As shown in Fig. 19, batch sizes ranging from 100 until 2000 were used. It was noted that LSTM took less time to process the data than all other models in all batch sizes for binary classification scenarios, but ANN works faster than other models like LSTM, when the size of the batches increases, as shown in Fig. 20.

Fig. 19
figure 19

Throughput of binary classification based on batch size

Fig. 20
figure 20

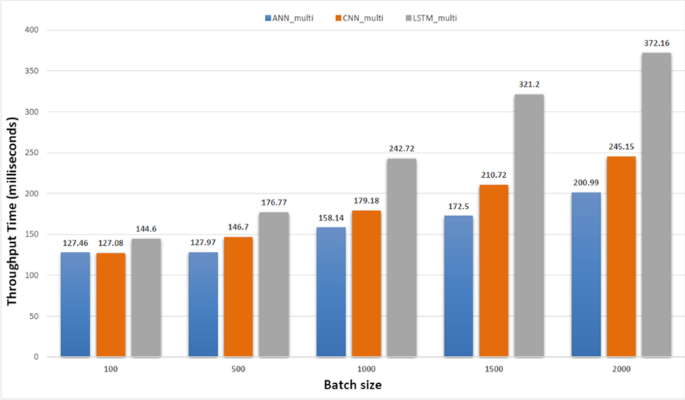

Throughput of multi-classification based on batch size

Conclusion and future work

The Internet of Things (IoT) has become a part of our daily lives because of the ease it brings in our everyday lives and in every field. This has enabled attackers and people with malicious intent to compromise the confidentiality, integrity and availability of these IoT devices and networks. In this research work, we have proposed a scalable and agile Intrusion Detection System (IDS) using multi-staged binary and multi-class classifiers using simple and ensemble-based deep learning approaches, respectively. The ensemble approach is based on both deep learning and hybrid machine and deep learning approaches to achieve very high detection accuracy. Moreover, we employed the Lambda architecture to add further efficiency and optimization in a way that training of both binary and multi-class classifiers takes place at the batch layer. At the same time, real-time IoT traffic is evaluated and analyzed in the low-latency speed layer with the help of model inferences. We also demonstrate that the ensemble approach results in higher detection accuracy and precision as compared to using the simple approach. We also demonstrate that using the Lambda architecture enhances system performance in terms of throughput.

In the future, we intend to employ more deep-learning approaches in the ensemble model to augment detection accuracy and system performance further. We also intend to test the proposed framework in a real-world production IoT environment to validate its performance further. Another important goal is to use Automated Machine Learning techniques for tuning the hyperparameters.


  • A labeled dataset with malicious and benign IoT network traffic, January 2020.

  • Agarwal V, Mishra P, Kumar S, Pilli ES (2022) A review on attack and security tools at network layer of IoT. Opt Wirel Technol 497–506

  • Ahmad R, Alsmadi I, Alhamdani W, Tawalbeh L (2022) A comprehensive deep learning benchmark for IoT IDS. Comput Secur 114:102588

    Article  Google Scholar

  • Alenezi M, Nadeem M, Asif R (2021) SQL injection attacks countermeasures assessments. Indones J Electr Eng Comput Sci 21(2):1121–1131

    Google Scholar

  • Alghamdi R, Bellaiche M (2021) A deep intrusion detection system in Lambda architecture based on edge cloud computing for IoT. In: 2021 4th International conference on artificial intelligence and big data (ICAIBD), pp 561–566. IEEE

  • Ali O, Cotae P (2018) Towards DoS/DDoS attack detection using artificial neural networks. In: 2018 9th IEEE annual ubiquitous computing, electronics & mobile communication conference (UEMCON), pp 229–234. IEEE

  • Amanullah MA, Habeeb RAA, Nasaruddin FH, Gani A, Ahmed E, Nainar ASM, Akim NM, Imran M (2020) Deep learning and big data technologies for IoT security. Comput Commun 151:495–517

    Article  Google Scholar

  • Aswale P, Shukla A, Bharati P, Bharambe S, Palve S (2019) An overview of internet of things: architecture, protocols and challenges. Inf Commun Technol Intell Syst 299–308

  • Azumah SW, Elsayed N, Adewopo V, Zaghloul ZS, Li C (2021) A deep LSTM based approach for intrusion detection IoT devices network in smart home. In: 2021 IEEE 7th world forum on internet of things (WF-IoT), pp 836–841. IEEE

  • Bisong E (2019) Building machine learning and deep learning models on Google cloud platform: a comprehensive guide for beginners. Apress

  • Carnero A, Martín C, Torres DR, Garrido D, Díaz M, Rubio B (2021) Managing and deploying distributed and deep neural models through Kafka-ML in the cloud-to-things continuum. IEEE Access 9:125478–125495

    Article  Google Scholar

  • Chicco D, Jurman G (2020) The advantages of the Matthews correlation coefficient (MCC) over f1 score and accuracy in binary classification evaluation. BMC Genomics 21(1):1–13

    Article  Google Scholar

  • Davis J, Goadrich M (2006) The relationship between precision-recall and ROC curves. In Proceedings of the 23rd international conference on Machine learning, pp 233–240

  • Diro A, Chilamkurti N (2018) Leveraging LSTM networks for attack detection in fog-to-things communications. IEEE Commun Mag 56(9):124–130

    Article  Google Scholar

  • Panel Docs (2020) Man-in-the-middle attacks. [Online]. Accessed 8 Oct 2021

  • Fang Y, Li Y, Liu L, Huang C (2018) Deepxss: cross site scripting detection based on deep learning. In: Proceedings of the 2018 international conference on computing and artificial intelligence, pp 47–51

  • Ghimire B, Rawat DB (2022) Recent advances on federated learning for cybersecurity and cybersecurity for federated learning for internet of things. IEEE Internet Things J

  • Grochowski E, Ronen R, Shen J, Wang H (2004) Best of both latency and throughput. In: IEEE international conference on computer design: VLSI in computers and processors, 2004. ICCD 2004. Proceedings, pp 236–243. IEEE

  • Gustavsson V (2019) Machine learning for a network-based intrusion detection system: an application using zeek and the cicids2017 dataset

  • Hertel L, Collado J, Sadowski P, Ott J, Baldi P (2020) Sherpa: robust hyperparameter optimization for machine learning. SoftwareX 12:100591

    Article  Google Scholar

  • Idrissi I, Boukabous M, Azizi M, Moussaoui O, El Fadili H (2021) Toward a deep learning-based intrusion detection system for IoT against botnet attacks. IAES Int J Artif Intell 10(1):110

    Google Scholar

  • Kayode O (2020) A cloud based approach for data security in IoT

  • Khan AR, Kashif M, Jhaveri RH, Raut R, Saba T, Bahaj SA (2022) Deep learning for intrusion detection and security of internet of things (IoT): current analysis, challenges, and possible solutions. Secur Commun Netw 2022

  • Khattak HA, Shah MA, Khan S, Ali I, Imran M (2019) Perception layer security in internet of things. Future Gener Comput Syst 100:144–164

    Article  Google Scholar

  • Lahasan B, Samma H (2022) Optimized deep autoencoder model for internet of things intruder detection. IEEE Access 10:8434–8448

    Article  Google Scholar

  • Lata M, Kumar V (2022) IoT network security in smart homes. In: Cybersecurity in smart homes: architectures, solutions and technologies, pp 155–176

  • Lopez MA, Lobato AGP, Duarte OCMB, Pujolle G (2018) An evaluation of a virtual network function for real-time threat detection using stream processing. In: 2018 Fourth international conference on mobile and secure services (MobiSecServ), pp 1–5. IEEE

  • Ma W (2020) Analysis of anomaly detection method for internet of things based on deep learning. Trans Emerg Telecommun Technol 31(12):e3893

    Google Scholar

  • Malik R, Singh Y, Sheikh ZA, Anand P, Singh PK, Workneh TC (2022) An improved deep belief network IDS on IoT-based network for traffic systems. J Adv Transp 2022

  • Maniath S, Ashok A, Poornachandran P, Sujadevi VG, Prem Sankar AU, Jan S (2017) Deep learning LSTM based ransomware detection. In: 2017 Recent developments in control, automation & power engineering (RDCAPE), pp 442–446. IEEE

  • Martins I, Resende J, Sousa PR, Silva S, Antunes L, Gama J (2022) Host-based IDS: a review and open issues of an anomaly detection system in IoT. Future Gener Comput Syst

  • Mehedi ST, Anwar A, Rahman Z, Ahmed K, Rafiqul I (2022) Dependable intrusion detection system for IoT: a deep transfer learning-based approach. IEEE Trans Ind Inform

  • Miao J, Zhu W (2021) Precision–recall curve (PRC) classification trees. Evol Intell 15:1545–1569

    Article  Google Scholar

  • Nair S (2019) Web application firewall (WAF) solutions. [Online]. Accessed 21 March 2020

  • Otoum Y, Liu D, Nayak A (2022) Dl-IDS: a deep learning-based intrusion detection framework for securing IoT. Trans Emerg Telecommun Technol 33(3):e3803

    Google Scholar

  • Pan J, Ye N, Hanxiao Y, Hong T, Al-Rubaye S, Mumtaz S, Al-Dulaimi A, Chih-Lin I (2022) AI-driven blind signature classification for IoT connectivity: a deep learning approach. IEEE Trans Wirel Commun

  • Patan R, Rajasekhara Babu M (2018) A novel performance aware real-time data handling for big data platforms on Lambda architecture. Int J Comput Aided Eng Technol 10(4):418–430

    Article  Google Scholar

  • Prabha PS, Kumar SM (2022) A novel cyber-attack leads prediction system using cascaded R2CNN model. Int J Adv Comput Sci Appl 13(2)

  • Roopak M, Tian GY, Chambers J (2019) Deep learning models for cyber security in IoT networks. In: 2019 IEEE 9th annual computing and communication workshop and conference (CCWC), pp 0452–0457. IEEE

  • Saha A, Subramanya A, Pirsiavash H (2020) Hidden trigger backdoor attacks. Proc AAAI Conf Artif Intell 34:11957–11965

    Google Scholar

  • Sarhan M, Layeghy S, Moustafa N, Portmann M (2020) Netflow datasets for machine learning-based network intrusion detection systems. In: Big data technologies and applications, pp 117–135. Springer

  • Sarker IH, Khan AI, Abushark YB, Alsolami F (2022) Internet of things (IoT) security intelligence: a comprehensive overview, machine learning solutions and research directions. Mob Netw Appl 1–17

  • Shahid WB, Baber A, Haider A, Khalid SB, Hammad A (2022) An enhanced deep learning based framework for web attacks detection, mitigation and attacker profiling. J Netw Comput Appl 198:103270

    Article  Google Scholar

  • Siddique K, Akhtar Z, Khan MA, Jung Y-H, Kim Y (2018) Developing an intrusion detection framework for high-speed big data networks: a comprehensive approach. KSII Trans Internet Inf Syst 12:4021–4037.

    Article  Google Scholar

  • Tangsatjatham P, Nupairoj N (2016) Hybrid big data architecture for high-speed log anomaly detection. In: 2016 13th International joint conference on computer science and software engineering (JCSSE), pp 1–6. IEEE

  • Visa S, Ramsay B, Ralescu AL, Van Der Knaap E (2011) Confusion matrix-based feature selection. MAICS 710(1):120–127

    Google Scholar

  • Yang F, Merlino G, Ray N, Léauté X, Gupta H, Eric T (2017) Open source lambda architecture for interactive analytics, The RADStack

Download references

Author information

Authors and Affiliations



All authors read and approved the final manuscript.

Corresponding author

Correspondence to Martine Bellaiche.

Ethics declarations

Competing Interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Alghamdi, R., Bellaiche, M. An ensemble deep learning based IDS for IoT using Lambda architecture. Cybersecurity 6, 5 (2023).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:
