WAS: improved whitebox cryptographic algorithm over AS iteration
Cybersecurity volume 6, Article number: 56 (2023)
Abstract
The attacker in whitebox model has full access to software implementation of a cryptographic algorithm and full control over its execution environment. In order to solve the issues of high storage cost and inadequate security about most current whitebox cryptographic schemes, WAS, an improved whitebox cryptographic algorithm over AS iteration is proposed. This scheme utilizes the AS iterative structure to construct a lookup table with a fivelayer ASASA structure, and the maximum distance separable matrix is used as a linear layer to achieve complete diffusion in a small number of rounds. Attackers can be prevented from recovering the key under blackbox model. The length of nonlinear layer S and affine layer A in lookup table is 16 bits, which effectively avoids decomposition attack against the ASASA structure and makes the algorithm possess antikey extraction security under the whitebox model, while WAS possesses weak whitebox (32 KB, 112)space hardness to satisfy anticode lifting security. WAS has provable security and better storage cost than existing schemes, with the same antikey extraction security and anticode lifting security, only 128 KB of memory space is required in WAS, which is only 14% of SPACE16 algorithm and 33% of Yoroi16 algorithm.
Introduction
Modern cryptography is widely used in symmetric cryptographic schemes for data encryption and asymmetric cryptographic schemes for digital signatures and key establishment, etc. Most of the above cryptographic schemes are analyzed for security under the blackbox attack model, i.e., assuming that the communication endpoint is trusted and the internal state and algorithmic laws of the algorithm are unknown to the adversary. The attacker in the blackbox model can only access the input and output of the algorithm and does not know the detailed information generated during the execution of the encryption and decryption algorithm, but the blackbox model is vulnerable to attacks (Kocher 1109). In the graybox attack model, the attacker can not only access information through untrusted channels, but also side channel information such as electromagnetic radiation, current flow, and running time during the encryption and decryption of the algorithm. By analyzing the side channel information, he can effectively obtain part of the algorithm's operation laws of the cryptographic algorithm and thus recover the key by various means. The analysis under the gray box model is also known as Side Channel Analysis (SCA), which can be used to obtain the side channel information statistically through electromagnetic analysis (Chari et al. 2523) and other means, and then obtain useful key information, etc.
In recent years, Digital Rights Management(DRM), smartphones and cloud services have emerged, and more and more cryptographic algorithms are running in untrusted endpoint environments. At the same time, various attacks have emerged, such as key whitening attacks, entropy attacks, and software static analysis. In 2002, Chow et al. (2002a) introduced the first whitebox attack model, in which an attacker has full access to the software implementation of a cryptographic algorithm and full control over its execution environment, and can change the implementation details of the cryptographic algorithm at will, with full visibility of the algorithm's computational process, posing a huge potential threat to data security. How to securely implement cryptographic algorithms and secure keys in the program has become an urgent problem. Therefore, the study of new whitebox cryptographic algorithms can effectively guarantee the security of keys in a whitebox environment, enabling the cryptographic algorithm cope with a variety of attacks and help data and information security.
An attacker can launch key extraction attack, decomposition attack and code lifting attack under the whitebox model (Chen et al. 2021). In key extraction attack, the attacker tries to extract the key from the whitebox implementation (Yao et al. 2020); in decomposition attack, the attacker tries to find a less costly implementation to maintain the exact same functionality as the original version; in code lifting attack, the attacker uses the original cryptographic program as a large valid key for encrypting/decrypting on different devices. Whitebox ciphers can provide high strength security in the above attack environment. In this paper, we design the WAS whitebox block cipher algorithm using a new lookup table theoretical construction, and analyze and compare the security with other whitebox cipher schemes to prove the advantages of this scheme.
Related work
In 2002, Chow et al. (2002a) introduced a whitebox attack model and designed a whitebox Advanced Encryption Standard (AES) algorithm using a set of keydependent lookup tables. Chow et al. also proposed a whitebox implementation of Data Encryption Standard (DES) by interleaving the use of affine transformation and delinearization techniques (Chow et al. 2002b), whose main design idea was to hide the key by constructing a lookup table. In 2010, Xiao et al. (2010) improved the whitebox AES proposed in the reference (Chow et al. 2002a) by using a 16bit linear encoding for the obfuscation operation and abandoning the use of nonlinear encoding, which required considerable memory space for the implementation of this scheme as a way to achieve a higher level of security.
In 2009, Xiao and Lai (2009a) used the first whitebox implementation of the SM4 algorithm (denoted as the XiaoSM4 whitebox scheme) by constructing a lookup table, which transforms each round of the round function operation into the computation of the affine transform as well as the lookup table, and then the output of the lookup table is dissociated. Karroumi (2010) proposed an alternative whitebox implementation of AES in 2010, which allows the expected security level of the scheme to be increased from 2^{30} to 2^{91} by using an additional set of coefficients obtained from the pairwise representation of AES. In 2014, Luo et al. (2014) improved on Xiao et al.’s whitebox AES using nonlinear encoding. In 2016, Bai and Wu (2016) proposed a whitebox implementation of the SM4 algorithm (denoted as BaiWu SM4 whitebox scheme) using the same construction of lookup tables. To improve efficiency, the BaiWu SM4 whitebox scheme uses two types of lookup tables: one to perform output decoding and encoding of new inputs, and the other to compute the round function of the standard SM4 algorithm. In 2020, Si and Jie (2020) proposed a novel whitebox implementation of SM4 by first representing the linear transformation of the SM4 algorithm as a matrix, then constructing each round function as four lookup tables with 8bit inputs and 64bit outputs, and extracting meaningful 32bit data after the lookup table using the shift matrix. In 2021, an attack against this scheme was proposed in the reference (Lu and Li 2021).
Another design idea for whitebox ciphers is to design new whitebox block cipher algorithms that are secure under the whitebox model. Usually this design is based on keyrelated components, such as Sboxes. A common property of new whitebox algorithm designs is incompressibility, also known as weak whitebox security or spatial hardness.
In 2014, Biryukov et al. (2014) designed a strong whitebox public key cryptographic scheme, a weak whitebox block cryptographic scheme and a blackbox block cryptographic scheme based on the ASASA structure (i.e., nonlinear layer S and affine layer A iterative structure). In 2015, Bogdanov and Isobe (2015) proposed a dedicated whitebox scheme called SPACE for spatially hard ciphers. The SPACE reduces the security against key extraction and decomposition attacks under the whitebox attack model to the key recovery problem for block ciphers under the blackbox attack model; the design idea used is to construct lookup tables from AES by restricting plaintexts and truncating ciphertexts, which makes the attacker cannot recover the key used to generate the lookup table based on the security of AES alone. The concept of (M, Z)space hardness security was also proposed for evaluating the strength of whitebox ciphers against code lifting attacks, which is a generalization of the weak whitebox security concept in the reference (Biryukov et al. 2014). In 2016, Bogdanov et al. (2016) proposed a new efficient whitebox block cipher SPNbox, which is designed using a Substitution Permutation Network (SPN) structure as keydependent Sboxes. The SPNbox can provide all important whitebox security properties of quantifiable spatial hardness. In 2017, Lin et al. (2017) designed a whitebox cryptographic scheme based on the ASASASA structure. In 2021, Koike and Isobe (2021) designed the whitebox block cipher Yoroi to improve the security of code lifting attacks against continuous data leakage by updating incompressible tables. Moreover, Yoroi only needs to update the lookup table periodically and does not require updating the key.
For attacks on whitebox ciphers, in 2004, Billet et al. (2004) proposed an attack against the whitebox AES scheme in the reference (Chow et al. 2002a), denoted as the BGE attack; the key was successfully recovered by means of combining lookup tables and offsetting nonlinear encoding. In recent years, attacks against the XiaoSM4 whitebox scheme have continued to emerge. In 2013, Lin and Lai (Lin and Lai 2013) proposed an attack that could recover the key with a time complexity of 2^{47}. In 2018, Pan et al. (2018) pointed out some complexity bias in the analysis of Lin et al. In 2021, Zhang et al. (2021) proposed an attack against the XiaoSM4 whitebox scheme, and they proposed IntermediateValues Mean Difference Analysis (IVMDA) based on Differential Computation Analysis (DCA), and successfully recovered the round key of the XiaoSM4 whitebox scheme. Meanwhile, Zhang et al. proposed an improved scheme that can resist IVMDA by protecting the output of the lookup table with nonlinear encoding. The above scholars have proposed different design schemes and analysis methods in terms of security analysis and performance enhancement of whitebox ciphers, but most of them are based on the modification of existing cryptographic algorithms, which are still deficient in terms of security and space performance.
The main contributions of this paper are as follows.

(1)
An improved whitebox cryptographic algorithm over AS iteration is proposed. Using the AS iterative structure, a lookup table with a fivelayer ASASA structure is constructed, and the linear layer uses the Maximum Distance Separable (MDS) matrix. In the blackbox model, the WAS can effectively prevent the attacker from recovering the key. The length of both the nonlinear layer S and the affine layer A in the lookup table is 16 bits, which effectively avoids the decomposition attack against the ASASA structure and makes the algorithm secure against key extraction under the whitebox model.

(2)
The security of the WAS algorithm is proved. The algorithm possesses weak whitebox (32 KB, 112)space hardness and satisfies the anticode lifting security. Compared with other whitebox cryptographic schemes, this scheme occupies less memory space and satisfies the design goals of security and efficiency. The lookup table of ASASA structure is treated as an Sbox for testing and validation. After theoretical analysis and experimental testing, the data generated using the pseudorandom number generator has a nonlinearity of about 95.00 and a differential uniformity of 0.039.
Preliminary knowledge
The SPN structure was originally proposed by Shannon and the structure belonged to the same iterative algorithm as the Feistel structure. The cryptographic algorithm of the SPN structure uses two key steps of diffusion and obfuscation for multiplicative iteration, which is constructed as follows (Kong 2021).

(1)
Specify the plaintext grouping and key length, and add the generated subkeys to each iteration of the algorithm's encryption and decryption operations.

(2)
The plaintext and the key after the operation are subjected to a dissimilarity operation, and then the substitution and replacement operations are performed respectively. The components of Substitution and Permutation are called Sboxes and Pboxes, respectively. The substitution is a nonlinear operation, while the permutation eliminates the statistical properties of the input plaintext and thus better protects the key information.

(3)
The ciphertext is obtained by repeated iterations with different iteration rounds designed.
AES is an SPN type block cipher algorithm with a group length of 128 bits and supports three different key sizes, i.e., 128/192/256 bits, denoted as AES128, AES192 or AES256, respectively. In general, AES consists of R rounds with R + 1 128bit round keys, which are obtained from the AES key using the AES key scheduling algorithm; R depends on the key size, i.e., R = 10, 12 or 14 in the case of AES128, AES192 or AES256. The initial and final states are the plaintext and ciphertext of AES, respectively, and an AES state is represented by a 4 × 4 byte array \(\left[ {state_{i,j} } \right]\left( {0 \le i,j \le 3} \right)\), called the state array.
Each AES round contains the following four operations, in particular, a key addition operation is performed before the start of the first round, and the last round has no column mixing operation.

(1)
SubBytes: The AES Sbox is applied to each byte of the state. AES uses a fixed Sbox, denoted by S, which is a nonlinear bijective mapping from eight bits to eight bits. The Sbox of AES has a high algebraic count.

(2)
ShiftRows: In the case of \(0 \le i \le 3\), shift each row i of the state array i bytes to the left. The row indexed by i = 0 remains unchanged.

(3)
Mixcolumns: It is a linear operation in \({\mathbb{F}}_{256}^{16}\), specific definition:
$$\left( {\begin{array}{*{20}c} {state_{0,j}^{\prime } } \\ {state_{1,j}^{\prime } } \\ {state_{2,j}^{\prime } } \\ {state_{3,j}^{\prime } } \\ \end{array} } \right) = \left( {\begin{array}{*{20}c} {02} & {03} & {01} & {01} \\ {01} & {02} & {03} & {01} \\ {01} & {01} & {02} & {03} \\ {03} & {01} & {01} & {02} \\ \end{array} } \right) \cdot \left( {\begin{array}{*{20}c} {state_{0,j} } \\ {state_{1,j} } \\ {state_{2,j} } \\ {state_{3,j} } \\ \end{array} } \right)$$(1)
(4)
AddRoundKey: It is a XOR orientation of the 128bit round key and the state array.
Bringer et al. (2006) used a whitebox implementation of the AES algorithm by inserting scrambled terms. The means used is to add scrambling to the original scheme, which makes the algebraic structure more complex and thus much more difficult for an attacker to carry out the attack.
Design of WAS
WAS algorithm lookup table construction
The lookup table in this scheme is denoted as S, which consists of a fivelayer ASASA structure, and the specific process of lookup table generation is as follows.

(1)
Generate a sufficient number of pseudorandom bits using a key. Specifically, the sequence of pseudorandom bits is generated in counter mode using the block cipher E, encrypted with the master key. CTR_DRBG is chosen as the PRNG (Pseudo Random Number Generator) and AESCTR as the underlying architecture of CTR_DRBG. For example, in the case of E = AES128, the key of AESCTR is set as the 128bit secret master key of this scheme, and the 128bit plaintexts 0, 1, … (as many as possible) are encrypted by encrypting the 128bit plaintexts 0, 1, … (as many as possible) to finally generate the desired sequence of pseudorandom bits.

(2)
Arrange the pseudorandom bits generated in (1) into a 16 × 16 matrix and check whether the matrix is invertible. If it is invertible, it is left as an invertible affine transform of the Alayer together with any 16bit constant, which is denoted as Q_{j} (j = 1, 2, 3), if it is not invertible, it is discarded.

(3)
The pseudorandom bits generated in (1) are used to generate a 16bit random permutation using the random permutation generation algorithm (Bacher et al. 2017), denoted as s_{j} (j = 1, 2), as the Slayer in the lookup table. In the Additional file 1, we give an example of the random number lookup table formed using the above method.
The generated Q_{j} and s_{j} are arranged together to be used as the secret keyrelated Sbox in WAS as follows:
Specific design of WAS algorithm
The WAS uses the SPN structure with MDS matrix as the underlying structure and uses the MDS matrix in the linear layer. The group length of WAS is 128 bits and there are ten rounds of iterations. The state of WAS is defined as a vector consisting of eight elements with 16 bits each: X = {X_{0},…X_{7}}. The plaintext X^{0} is transformed to the ciphertext X^{10} by a round function operation:
where i is the number of iteration rounds and \(\bigcirc\) denotes the composite of the function. The structure of the round function is shown in Fig. 1. The encryption algorithm of WAS is shown in Algorithm 1 and the decryption algorithm is shown in Algorithm 2.

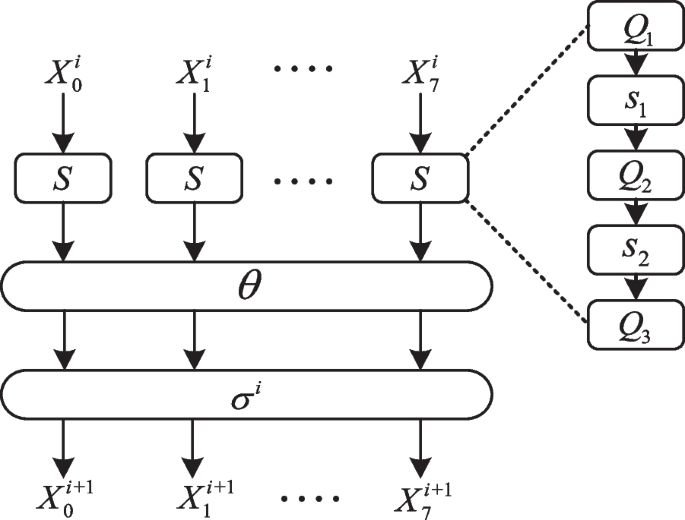

Each round of WAS contains three layers, which are nonlinear layer γ, linear layer θ, and affine layer σ^{i}.

(1)
Nonlinear layer γ: It is a nonlinear layer constructed from eight secret keyrelated Sboxes. Since the Sbox can be isolated separately by a whitebox attacker, it must be an independent primitive that can ensure the nbit security of the key even if the attacker obtains the complete ciphertext of the Sbox. Here, the AS iteration structure is used to generate a lookup table S with a fivelayer ASASA structure as the keyrelated Sbox in the nonlinear layer. The nonlinear substitution layer γ is defined as follows.
$$\begin{array}{*{20}l} {\gamma :\left( {{\mathbb{F}}_{2}^{16} } \right)^{8} \to \left( {{\mathbb{F}}_{2}^{16} } \right)^{8} } \hfill \\ {\left( {X_{0} , \ldots ,X_{7} } \right) \mapsto \left( {S\left( {X_{0} } \right), \ldots ,S\left( {X_{7} } \right)} \right)} \hfill \\ \end{array}$$(4)
(2)
Linear layer θ: It is a linear layer that plays a diffusion role. The linear layer θ applies an 8 × 8 MDS matrix with the matrix used in the block cipher (Barreto and Rijmen 2000), defined as follows:
$$M_{16} = had\left( {1_{x} ,3_{x} ,4_{x} ,5_{x} ,6_{x} ,8_{x} ,{\text{b}}_{x} ,7_{x} } \right).$$Linear layer θ is defined as follows.
$$\begin{array}{*{20}l} {\theta :\left( {{\mathbb{F}}_{2}^{16} } \right)^{8} \to \left( {{\mathbb{F}}_{2}^{16} } \right)^{8} } \hfill \\ {\left( {X_{0} , \ldots ,X_{7} } \right) \mapsto \left( {X_{0} , \ldots ,X_{7} } \right) \cdot M_{16} } \hfill \\ \end{array}$$(5)
(3)
Affine layer \(\sigma^{i}\): It is an affine layer, it XOR with C^{i} which is the constant associated with the round function in round i, defined as follows
$$\begin{array}{*{20}l} {\sigma^{i} :\left( {{\mathbb{F}}_{2}^{16} } \right)^{8} \to \left( {{\mathbb{F}}_{2}^{16} } \right)^{8} } \hfill \\ {\left( {X_{0} , \ldots ,X_{7} } \right) \mapsto \left( {X_{0} \oplus C_{0}^{i} , \ldots ,X_{7} \oplus C_{7}^{i} } \right)} \hfill \\ \end{array}$$(6)where \(C_{j}^{i} = 8\left( {i  1} \right) + j + 1,\quad 0 \le j \le 7\).
Security analysis of WAS algorithm
Security analysis under the blackbox model
In the blackbox attack model, the attacker's goal is to recover the key. In this case, the attacker attacks by bruteforce cracking and its primary goal is to guess the secret component, which in this scenario refers to the lookup table S. The time complexity of the attack here is about \(2^{{2^{16} \cdot 16}}\); if the attacker guesses the master key, the time complexity required here is higher than 2^{128}. Next, the security analysis of WAS under the blackbox model is discussed.
The ability of a cryptographic algorithm to resist differential cryptanalysis under a black box model can be assessed by calculating the number of differentially active round functions in the cryptographic algorithm, and the maximum differential probability of the round functions. A round function is said to be differentially active if the input differential of the round function is not zero.

(1)
Differential cryptanalysis (Biham and Shamir 2012): for differential cryptanalysis, given an input differential a and an output differential b, \(a \in {\mathbb{F}}_{2}^{n} ,b \in {\mathbb{F}}_{2}^{n}\). Then for a function f: \({\mathbb{F}}_{2}^{n} \to {\mathbb{F}}_{2}^{n}\), its input is n bits and output is n bits.
$$\Pr [a,b] = \frac{{\# \{ xf(x) \oplus f(x \oplus a) = b\} }}{{2^{n} }}$$(7)
The number of differential branches of the linear layer in WAS is nine. Here, assume that the maximum differential probability of the secret Sbox in WAS is \(\frac{16}{{2^{16} }} \times 2 = \frac{16}{{2^{15} }} = 2^{  11}\), then the maximum differential probability of the WAS round function is 2^{−99}. The 16 here refers to the fact that each branch of the WAS algorithm processes 16 bits of data, 2^{15} refers to the fact that during the construction of the Sbox, pseudorandom bits are generated using the random permutation generation algorithm to generate 16 bits of random permutations, and there are two Slayers in the ASASA structure, and according to the above Eq. (7), the maximum differential probability of the WAS round function is 2^{−99}.
On the other hand, since the components in the secret Sbox are randomly generated and kept secret, it is difficult for an attacker to obtain the actual differential features. The WAS has at least 18 active Sboxes after four rounds, and if an attacker wants to extend the number of rounds of the differential distinguisher, the increase in the number of rounds corresponds to the rise in the amount of guessing keys required, and the amount of keys to be guessed for each extended round is \(2^{{2^{16} \cdot 16}}\). From the above analysis, it is clear that ten rounds of WAS can resist differential cryptanalysis.

(2)
Linear cryptanalysis (Matsui 1993): for linear cryptanalysis, given an input mask α and an output mask β, \(\alpha \in {\mathbb{F}}_{2}^{n} ,\beta \in {\mathbb{F}}_{2}^{n}\). Then for a function f: \({\mathbb{F}}_{2}^{n} \to {\mathbb{F}}_{2}^{n}\), whose input is n bits and output is n bits.
$$\Pr [\alpha ,\beta ] = \left( {\frac{{\# \{ x\alpha \cdot x \oplus \beta \cdot f(x) = 0\} }}{{2^{n  1} }}  1} \right)^{2}$$(8)
The number of linear branches of the linear layer in WAS is nine. Here, assume that the maximum linear probability of the secret Sbox in WAS is \(\left( {\frac{{2^{16  1} + 2^{16  1} \times \frac{2}{5 \times 16}}}{{2^{16  1} }}  1} \right)^{2} \approx 2^{10.62}\). Then the maximum linear probability of the WAS round function is \(2^{  95.58}\). The 16 here refers to the fact that each branch of the WAS algorithm processes 16 bits of data, The Sbox consists of a fivelayer structure, two of which are Slayers, with each branch handling 16 bits of data. According to the constructure of WAS’s Sbox and Eq. (8), the WAS round function linear probability at this point should be \(2^{  95.58}\) approximately.
On the other hand, since the components in the secret Sbox are randomly generated and kept secret, it is difficult for an attacker to obtain the actual linear approximation of the round function. The WAS has at least 18 active Sboxes after four rounds, and if the attacker wants to extend the number of rounds of the linear distinguisher, accordingly, the increase in the number of rounds corresponds to the rise in the amount of required guessing keys, and the amount of keys to be guessed for each extended round is \(2^{{2^{16} \cdot 16}}\). From the above analysis, it is clear that ten rounds of WAS can resist linear cryptanalysis.
The lookup table S designed after our whitebox construction is not an Sbox in the traditional sense, so its value is not fixed. Nevertheless, we can still use the metrics for evaluating Sboxes to measure the performance of these substitution matrices, as they all play a certain role in obfuscating and diffusing the data. An Sbox is essentially a mapping \(S\left( x \right) = \left( {f_{1} \left( x \right),f_{2} \left( x \right), \ldots ,f_{m} \left( x \right)} \right),F_{2}^{n} \to F_{2}^{m}\). The Sboxes are able to reflect the overall performance of the block cipher through the following metrics (Feng and Wu 2000).

Nonlinearity
\(S\left( x \right) = \left( {f_{1} \left( x \right),f_{2} \left( x \right), \ldots ,f_{m} \left( x \right)} \right),F_{2}^{n} \to F_{2}^{m}\) is a multioutput function, then there is:
$$N_{s} = \mathop {\mathop {\min }\limits_{{l \in L_{n} }} }\limits_{{0 \ne u \in F_{2}^{m} }} d_{H} \left( {u \cdot s\left( x \right),l\left( x \right)} \right)$$N_{s} is the degree of nonlinearity of s(x). where L_{n} denotes the set of all nelement linear and affine functions. To construct an effective linear approximation of a round function in linear cryptanalysis, it is necessary to construct a linear approximation of the Sbox. For linear cryptanalysis, the greater the nonlinearity of the Sbox, the better.

Differential uniformity
\(S\left( x \right) = \left( {f_{1} \left( x \right),f_{2} \left( x \right), \ldots ,f_{m} \left( x \right)} \right),F_{2}^{n} \to F_{2}^{m}\) is a multioutput function, then there is:
$$\delta = \frac{1}{{2^{n} }}\mathop {\mathop {\max }\limits_{{\alpha \in F_{2}^{n} }} }\limits_{\alpha \ne 0} \mathop {\max }\limits_{{\beta \in F_{2}^{m} }} \left {\left\{ {x \in F_{2}^{n} :S\left( {x \oplus \alpha } \right)  S\left( x \right) = \beta } \right\}} \right$$\(\delta\) is the differential uniformity of the Sbox. The resistance of a block cipher against differential analysis can be measured using differential uniformity. For differential cryptanalysis, the smaller the differential uniformity, the better.
The lookup table of ASASA structure is treated as an Sbox for testing and validation. After theoretical analysis and experimental testing, the data generated using the pseudorandom number generator has a nonlinearity of about 95.00 and a differential uniformity of 0.039. According to the test results, it is seen that because of the random generation method, our Sbox performance is not as good as the classical AES algorithm in terms of nonlinearity and differential uniformity. But our biggest advantage lies in the pseudorandom number generation and whiteboxed lookup table construction. This makes it difficult for the attacker to get the correct key information from the fixed Sbox or the actual operation of the algorithm, thus guaranteeing the security in the whitebox environment.

(3)
Structural cryptanalysis (Biryukov and Shamir 2010): structural cryptanalysis usually exploits the propagation properties of a collection of plaintexts with a special structure in the structure of a cryptographic algorithm to initiate an attack. This analysis method generally focuses on the structure of the cryptographic algorithm, independent of the specific algorithmic details, and is particularly suitable for cryptographic algorithms with secret components. A 2.5round generalized integral distinguisher for SPNtype structures that can recover the secret Sbox requires a data complexity of 2^{32} selected plaintexts and a time complexity of 2^{48}. However, no feasible structural cryptanalysis has been found to break a 10round WAS, so the current 10round WAS can resist structural cryptanalysis.
Security analysis of antikey extraction attack under whitebox model
First, a description of the key extraction attack under the whitebox model is given.

(1)
Decomposition attack on AS iteration structure. The key extraction attack on a whitebox block cipher algorithm with AS iterative structure under the whitebox model can be reduced to a decomposition attack on the AS iterative structure under the blackbox model. Biryukov et al. (Biryukov and Khovratovich 2015) proposed a decomposition attack on the ASASA scheme. It is shown that the decomposition attack on a whitebox block cipher algorithm with AS iterative structure holds when the size m of the Sbox and the block length n satisfy the conditions m^{2} ≤ n, e.g., 8bit Sbox and 128bit block length.

(2)
Key recovery attack on the underlying block cipher. The key extraction attack under the whitebox model for whitebox block ciphers that use the entire codebook of a small block cipher as a lookup table can be reduced to the key recovery attack on the underlying block cipher under the blackbox model. The underlying block cipher should be secure against key recovery attacks, i.e., there is no more effective attack than a generic attack such as a brute force attack. For example, the underlying block cipher in SPACE is AES128, and despite the extensive cryptanalysis work (Bogdanov et al. 2011; Derbez et al. 2013), no effective key recovery attack has been performed so far. More precisely, the key extraction advantage Adv_{KEWB} of SPACE in the whitebox model, is limited by the key recovery advantage Adv_{KRBB} of the underlying block cipher in the blackbox model: Adv_{KEWB} ≤ Adv_{KRBB}.

(3)
Key recovery attacks on random permutations. The key extraction attack under the whitebox model of the whitebox block cipher algorithm that uses random permutations as lookup tables can be reduced to the key recovery attack on random permutations. In this case, a PRNG with some security and a random permutation generation algorithm are used to generate random permutations with each other, e.g., AESCTR. Although an attacker who knows the complete ciphertext can find the pseudorandom bit string used in the generation by reversing the random permutation generation algorithm, he can only get some plaintext ciphertext pairs of AESCTR, which cannot be used to recover the key. The security of AESCTR makes it difficult for an attacker to recover the master key.
In the following, we analyze the security of antikey extraction under the whitebox model.
In the whitebox model, an attacker can observe not only the inputs and outputs of the cryptographic algorithm, but also has full access to all entries of the lookup table, i.e., all input–output pairs in the table. For key extraction security, an attacker cannot extract the keys embedded in the whitebox scheme. Key extraction attack is the most typical attack strategy against whitebox schemes today.
Biryukov and Khovratovich (2015) proposed a decomposition attack on the ASASA scheme. The authors show that the decomposition attack on the ASASA scheme holds when the small Sbox, here the size m of the Sbox in the nonlinear layer of the ASASA structure and the length n of the block cipher satisfy the conditions m^{2} ≤ n, for example, an 8bit Sbox and a 128bit block length. As mentioned above, the input and output of the lookup table in WAS with a fivelayer ASASA structure are 16 bits, and the Slayer of the lookup table is composed of 16bit random permutations, and the Alayer is a 16bit reversible affine transformation, i.e., both m and n are 16 bits, which does not satisfy the condition m^{2} ≤ n, so the lookup table in this scheme is secure against such a decomposition attack.
From the above analysis, it is clear that the ASASA structure of the lookup table in this scheme can resist the key extraction attack. Therefore, the attacker cannot recover the A and S layers of the lookup table, and cannot successfully extract the master key K_{AES} of AESCTR.
Security analysis of anticode lifting attack under whitebox model
In a mobile payment application scenario, an attacker located in the user's phone, for example, malware may try to lift the decryption key and use it to recover the transaction credentials; or it may copy the entire application to run on the phone to communicate with the payment terminal. Therefore, whitebox ciphers should also have security against code lifting attack. In this paper, the definition of weak whitebox space hardness (Bogdanov et al. 2016) is used to measure the strength of WAS against code lifting attacks.
The group length of WAS is 128 bits, and there are eight secret Sboxes in the nonlinear layer, each with 16 bits of input and output, for a total of ten iterations. In order to increase the probability of correctly decrypting a random ciphertext, an attacker can use a space of size less than M to store the explicit ciphertext pairs. Assuming that the cryptographer is able to store a total of 1/4 of the amount of code, the amount of code saved by the attacker is given as \(M_{a} = 16 \times 2^{14} bit\).
The set of plaintext pairs that the attacker has saved is denoted X_{s}, the ciphertext is denoted x_{0}, the plaintext is denoted x_{i}, and the attacker's guess of the plaintext is denoted \(\hat{x}_{i}\). If the attacker has saved the plaintext corresponding to this random ciphertext, then he can decrypt this ciphertext with probability 1. If the attacker has not saved the plaintext corresponding to this ciphertext, then the attacker needs to guess the plaintext corresponding to this random ciphertext.
For one round of WAS, the probability of a successful guess by the attacker is denoted as \(p_{1}\), as follows.
Therefore, the WAS has weak whitebox (32 KB, 112)space hardness, which means that even if an attacker succeeds in stealing a quarter of the entire lookup table, he cannot correctly decrypt a randomly selected ciphertext with a probability greater than 2^{−112}. The WAS and other schemes do not have the same anticode lifting security, but the WAS has good performance for code lifting attacks.
Side channel attack analysis
Bos et al. (2016) proposed a new class of side channel analysis means called Differential Computation Analysis (DCA). The DCA can be considered as a software version of the equivalent of Differential Power Analysis (DPA) applied to hardware. This analysis exploits memory access patterns during the execution of whitebox AES software, which allows attackers to execute binaries and simultaneously use dynamic binary tool frameworks such as PIN and Valgrind; by acquiring software traces, they can record read and write access traces to memory. Software traces are used to record the memory addresses accessed by the program during the encryption process. These traces also include other information that can be monitored using binary instrumentation, such as stack reads or register values. Software traces are used to determine which encryption algorithm is implemented, to determine the approximate location of the encryption algorithm in the software implementation, and to perform statistical analysis to extract the secret key. Side channel analysis takes advantage of the fact that each lookup table depends on only a small portion of the key, such as eight or 16 bits of the key. The DCA can efficiently extract a small portion of the key with the help of side channel leakage. However, the lookup table in this scheme contains the full 128 bits of key information. Therefore, even if an attacker can completely monitor the memory access pattern of the target keyrelated lookup table, the amount of information that the attacker has to guess is 2^{128}. Therefore, the WAS is resistant to DCA.
Whitebox diversity and whitebox ambiguity analysis
Whitebox diversity (Chow et al. 2002a): refers to the total number of possible lookup tables constructed in a whitebox scheme. Therefore, the greater the whitebox diversity, the more difficult it is for a cryptanalyst to break the scrambled code, and the more secure the whitebox scheme is (Xiao and Lai 2009b).
Whitebox ambiguity (Chow et al. 2002a): refers to the number of possible constructions for a given whitebox cipher or lookup table. The larger the whitebox ambiguity, the more difficult it is for the analyst to compute the key disambiguation code and the initial key, and the more secure the scheme is.
The number of integrable matrices of order 16 on \({\mathbb{F}}_{{2}}^{n}\) is approximately 2^{254}, thus
Decomposition attacks against the ASASA structure
In 2018, Minaud et al. (2018) proposed a new algebraic keyrecovery attack, and was able to break the secretkey scheme as well as the remaining publickey scheme, in time complexity 2^{63} and 2^{39}, respectively. This attack method targets the ASASA structure proposed by Biryukov et al. in ASIACRYPT 2014 (Biryukov et al. 2014). After testing and theoretical analysis, the attack achieved good results. Contrary to the attack of Gilbert et al. (2015), this attack is no hope of patching the scheme by increasing the number of perturbation polynomials. In addition, Dinur et al. (2015) proposed decomposition attacks and declared that these attacks are able to break all the proposed concrete ASASA constructions with practical complexity.
Based on the above scholars' proposed decomposition attack against the ASASA structure, the resistance of our WAS algorithm to this type of attack is analyzed.
The attack method proposed by Minaud et al. (2018) focus on removing the first linear layer, through creating a ranking function F to recognize whether an input difference δ activates one or two Sboxes in the first Sbox layer. During the attack, the δ’s are randomly selected. Then 16 linearly independent δ’s are found and verified by a ranking function, and whether a single Sbox is activated. Each δ has probability 2^{−8} of activating a single Sbox.
Our WAS algorithm uses eight independent Sboxes that are constructed by whitebox through multiple layers of iterations, \(S = Q_{3} \circ s_{2} \circ Q_{2} \circ s_{1} \circ Q_{1}\). Pseudorandom bit sequences \(Q_{j}\) and random permutations \(s_{j}\) enhance the obfuscation of the data. According to the decomposition attack, the probability of eight Sboxes in a round being activated is \(\left( {2^{  8} } \right)^{8} = 2^{  64}\). The probability that the key information in all ten rounds are cracked is \(\left( {\left( {2^{  8} } \right)^{8} } \right)^{10} = 2^{  640}\). This value clearly exceeds the predetermined computational complexity of the attacker's attack.
In addition, the decomposition attack assumes that the attacker has access to the full codebook. Even in an actual whitebox attack environment, this is quite difficult. Based on actual attack tests using the MDS matrix, both ranking functions distinguish δ’s that activate one or two Sboxes much less efficiently. The WAS algorithm is constructed using the MDS matrix, which increases the difficulty of activation during the attack to a certain extent.
The resistance of WAS also exceeds the required computational complexity in Gilbert’s attack (Gilbert et al. 2015) method. Also the introduction of the MDS matrix and pseudorandom bit sequences increases the time complexity for the attacker to execute an effective attack. The scheme by Gilbert et al. concentrates on the cracking and analysis of public key ciphers. This method is not fully applicable for WAS that uses random permutations and pseudorandom series for iteration to construct a whitebox scheme.
Therefore, combining the above three approaches against the ASASA structure, the WAS scheme has good resistance to decomposition attacks and can be applied in a whitebox environment.
Comparison
The memory space required for WAS is 16 × 2^{16} 128 KB, the space comparison with other whitebox schemes is shown in Table 1, the security comparison of different whitebox schemes is shown in Table 2.
In the reference (Biryukov et al. 2014), the authors used the ASASA structure to construct a whitebox cryptographic scheme that occupies 8 MB of memory space, but it is currently compromised and cannot resist key extraction attacks as well as code lifting attacks under the whitebox model. The SPACE16 scheme in the reference (Bogdanov and Isobe 2015) occupies 918 KB of memory space and the SPACE24 scheme in the reference (Bogdanov and Isobe 2015) occupies 218 MB of memory space. The SPACE scheme adopts a very conservative design strategy and its internal round function needs to call a full ten rounds of AES128, thus it is less efficient. The Whiteblock16 scheme in the reference (Fouque et al. 2016) occupies 2 MB of memory space and achieves incompressibility by using keydependent pseudorandom functions. The FPLAES scheme in the reference (Kwon et al. 2020) uses parallel lookup tables to design whitebox block ciphers with high storage cost and requires 13.75 MB of storage space. The WARX scheme in reference (Liu et al. 2022) uses addition, rotation, XOR operations and MDS matrix, and the WARX is more efficient than SPNbox16 and WEM. The Yoroi16 scheme in reference (Koike and Isobe 2021) enhances the security of code lifting attacks against persistent leaks by updating incompressible tables, but requires multiple lookup tables and 384 KB of storage space. The Yoroi32 scheme in the reference (Koike and Isobe 2021) requires a large storage space of 48 GB. Compared with other whitebox cryptographic algorithms, the WAS has a lower storage cost of 128 KB and the size of both S and A layers in its lookup table is 16 bits.
As a result of the above analysis, our WAS algorithm can resist a wide range of attacks and has a small space, and it can satisfy the security requirements in a whitebox environment. It has good overall performance.
Conclusion
In this paper, we propose the WAS, an improved whitebox cryptographic algorithm over AS iteration and MDS matrix. The design uses the AS iterative structure to construct a lookup table with a fivelayer ASASA structure, and uses the SPN structure with MDS matrix as the underlying structure to reduce the number of rounds of the algorithm and improve the implementation efficiency of WAS by taking advantage of the good diffusion property of MDS matrix.
The security analysis shows that the WAS can effectively prevent the attacker from recovering the key under the blackbox model. The lookup table of ASASA structure is treated as an Sbox for testing and validation. Firstly, after theoretical analysis and experimental testing, the data generated using the pseudorandom number generator has a nonlinearity of about 95.00 and a differential uniformity of 0.039. Secondly, since the size of both Slayer and Alayer in the lookup table is 16 bits, they can resist the decomposition attack against the ASASA structure, and WAS has antikey extraction security under the whitebox model. Finally, the strength of WAS against code lifting attacks is evaluated using weak whitebox space hardness. Compared with other whitebox cryptographic algorithms, this scheme takes up less memory space. With the same antikey extraction security and anticode lifting security, the WAS requires 128 KB of memory space, which is only 14% of SPACE16 and 33% of Yoroi16, meeting the design goal of security and efficiency, and can be used for digital rights management, mobile payment, etc.
